Specifications
- Brand Name: FUSHI
- Model Number: MR74-2RS
- Torque Capacity: 4x7x2.5 MM
- Structure: Deep Groove Ball
- Coatings: 52100 Chrome steel
- Surface Roughness: Ra 0.05
- Material: STEEL
- Bearing Type: Ball
- For Load Direction: Radial
- Construction: Single Row
- Seal Type: Sealed
- Part Number: MR74 2RS
- For Shaft Diameter: 4mm
- Bore Dia (d): 4 mm
- Bore Dia Tolerance: -0.008mm to 0
- For Housing ID: 7mm
- Outer Dia (D): 7mm
- Outer Dia Tolerance: -0.008mm to 0
- Width (B): 2.5mm
- Width Tolerance: -0.12mm to 0
- Ring Material: 52100 Chrome steel
- Ball Material: 52100 Chrome steel
- Cage Material: 300 Series Stainless Stee
- Shield Material: 300 Series Stainless Stee
- Dynamic Load Rating (Cr) (Newtons): 164
- Static Load Rating (Cor) (Newtons): 52
- Max Speed (Grease) (X1000 RPM): 20
- Max Speed (Oil) (X1000 RPM): 20
- Lubrication: Grease
- Shaft Mount Type: Press Fit
- Temperature Range: -20 to 120
- ABEC Rating: ABEC-3
- Radial Clearance Trade No.: C0
- Radial Clearance: 0.002mm to 0.013mm
- Ball Qty: 8
- Ball Dia: 1.0000mm
- Weight (grams): 0.34

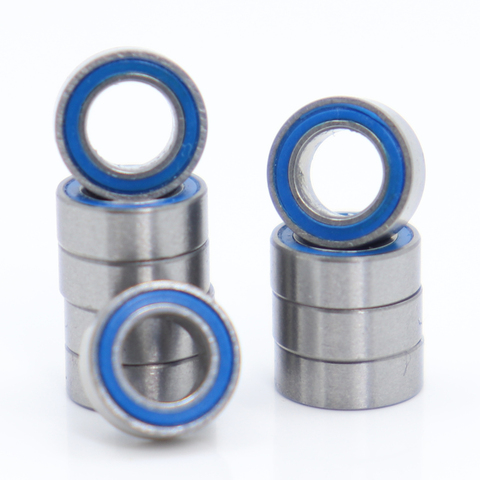

MR74RS Bearing ABEC-3 (10PCS) 4*7*2.5 mm Miniature MR74-2RS Ball Bearings RS MR74 2RS With Blue Sealed L-740D
8.99
$
4
orders
/
4
reviews
