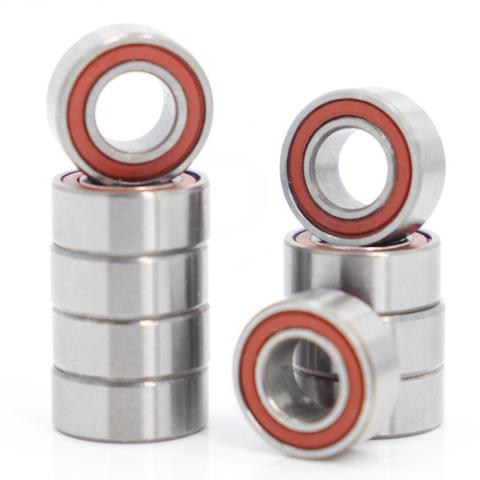

MR105RS Bearing ABEC-3 ( 10PCS ) 5X10X4 mm Miniature RC Motor MR105-2RS Ball Bearings MR105 RS 2RS Orange Sealed ► Photo 1/6
MR105RS Bearing ABEC-3 ( 10PCS ) 5X10X4 mm Miniature RC Motor MR105-2RS Ball Bearings MR105 RS 2RS Orange Sealed ► Photo 1/6
MR105RS Bearing ABEC-3 ( 10PCS ) 5X10X4 mm Miniature RC Motor MR105-2RS Ball Bearings MR105 RS 2RS Orange Sealed ► Photo 2/6
MR105RS Bearing ABEC-3 ( 10PCS ) 5X10X4 mm Miniature RC Motor MR105-2RS Ball Bearings MR105 RS 2RS Orange Sealed ► Photo 3/6

Photos of buyers

28 more
photos

Specifications

  • Brand Name: FUSHI
  • Model Number: MR105RS 5*10*4 Ball Bearing 5x10x4mm
  • Material: Bearing Steel
  • is_customized: Yes
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Sealed
  • Part Number: MR105 2RS
  • For Shaft Diameter: 5mm
  • Bore Dia (d): 5mm
  • Bore Dia Tolerance: -0.008mm to 0
  • For Housing ID: 10mm
  • Outer Dia (D): 10mm
  • Outer Dia Tolerance: -0.008mm to 0
  • Width (B): 4mm
  • Width Tolerance: -0.12mm to 0
  • Ring Material: 52100 Chrome steel
  • Ball Material: 52100 Chrome steel
  • Cage Material: 300 Series Stainless Steel
  • Shield Material: 300 Series Stainless Steel
  • Dynamic Load Rating (Cr) (Newtons): 266
  • Static Load Rating (Cor) (Newtons): 35
  • Max Speed (Grease) (X1000 RPM): 15
  • Max Speed (Oil) (X1000 RPM): 20
  • Lubrication: Grease
  • Shaft Mount Type: Press Fit
  • Temperature Range: -20 to 120
  • ABEC Rating: ABEC-3
  • Radial Clearance Trade No.: C0
  • Radial Clearance: 0.002mm to 0.013mm
  • Ball Qty: 8
  • Ball Dia: 1.2000mm
  • Weight (grams): 1.18

MR105RS Bearing ABEC-3 ( 10PCS ) 5X10X4 mm Miniature RC Motor MR105-2RS Ball Bearings MR105 RS 2RS Orange Sealed
