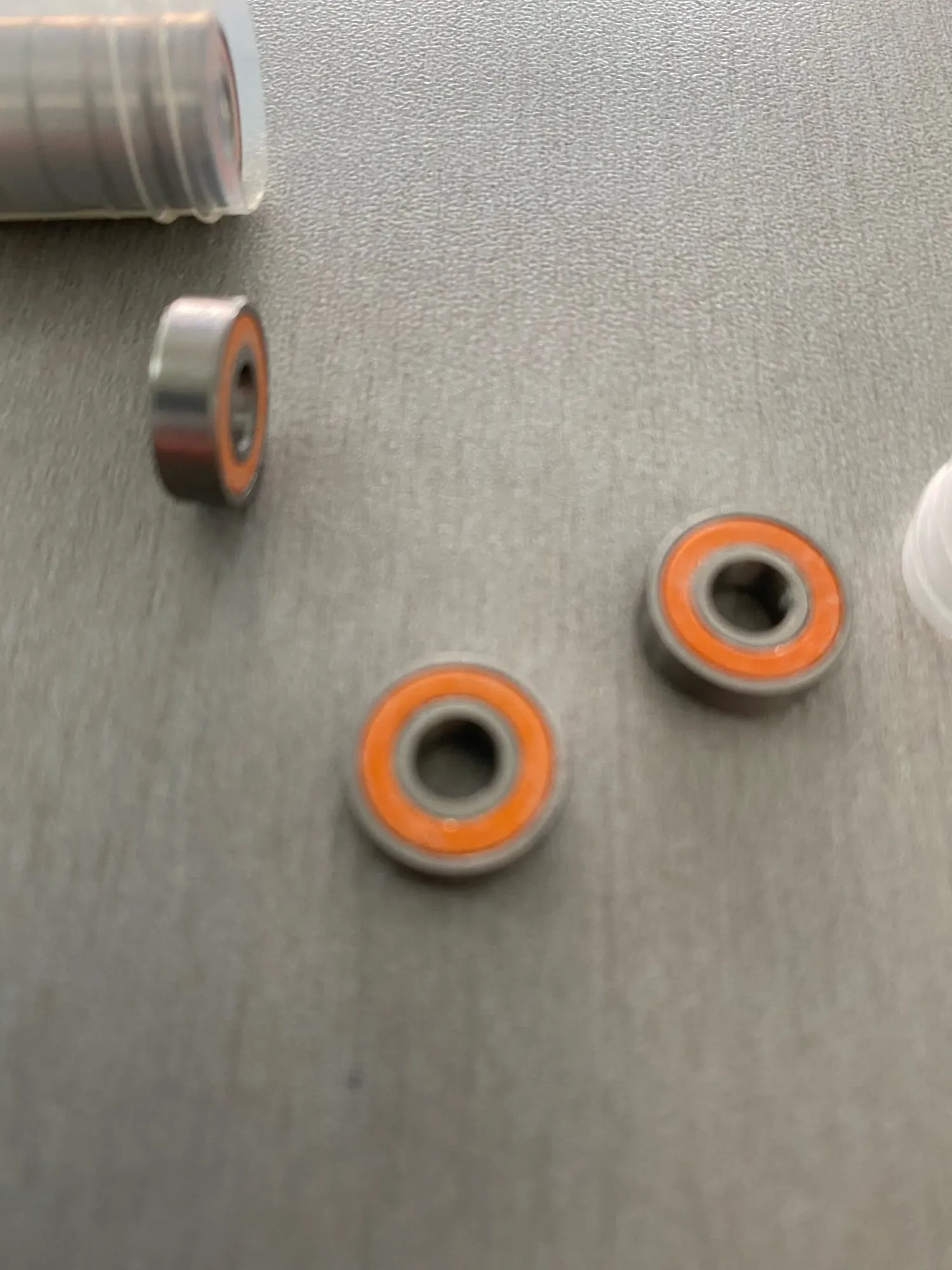

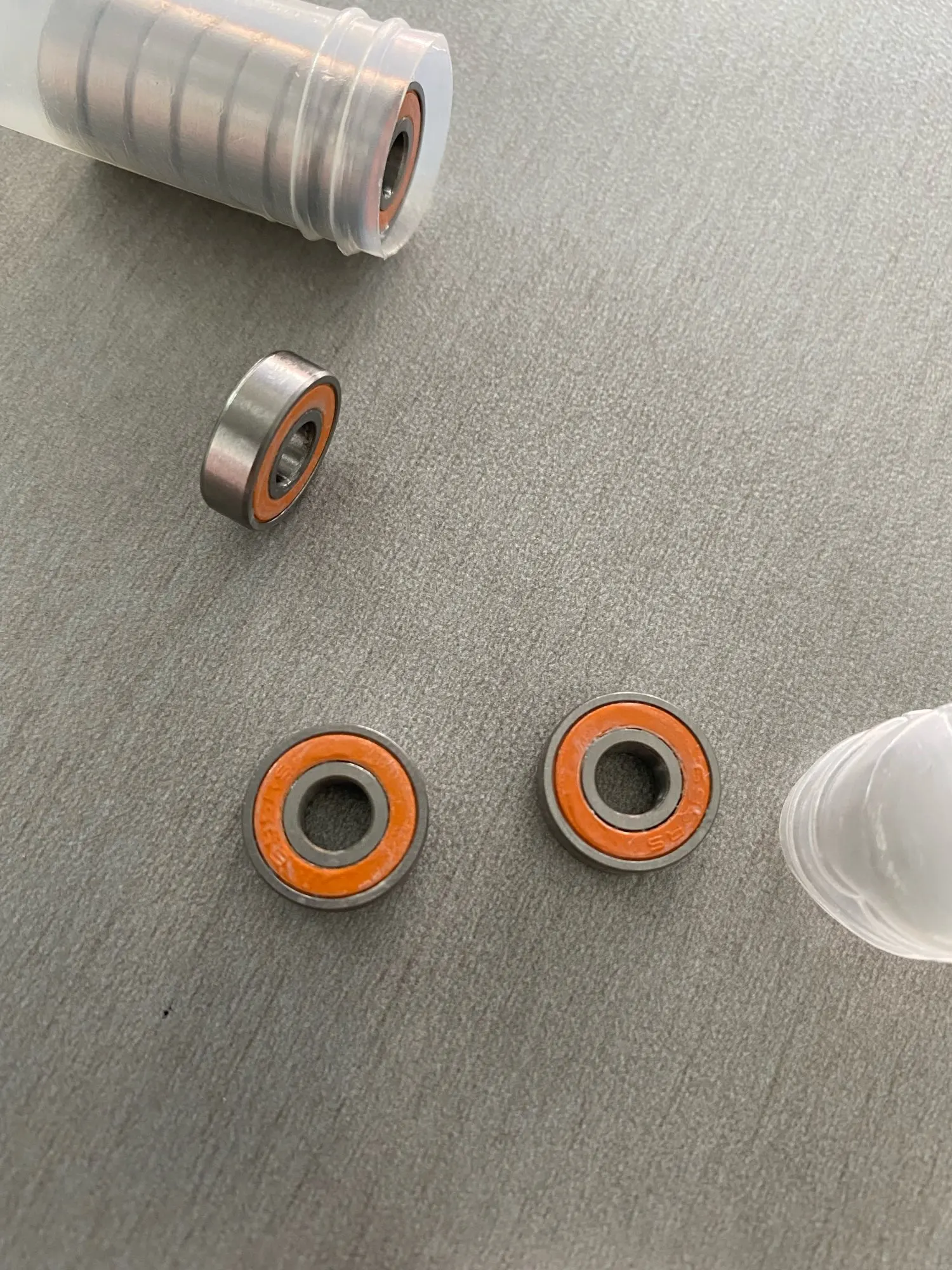

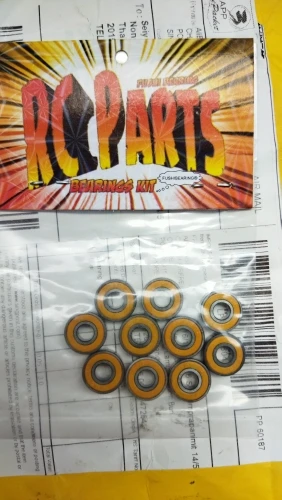

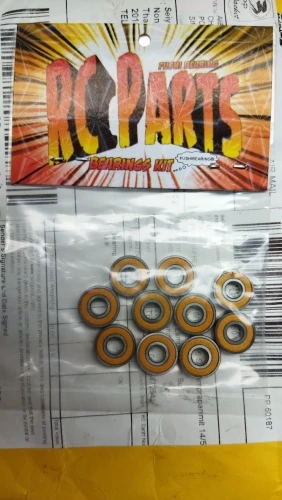

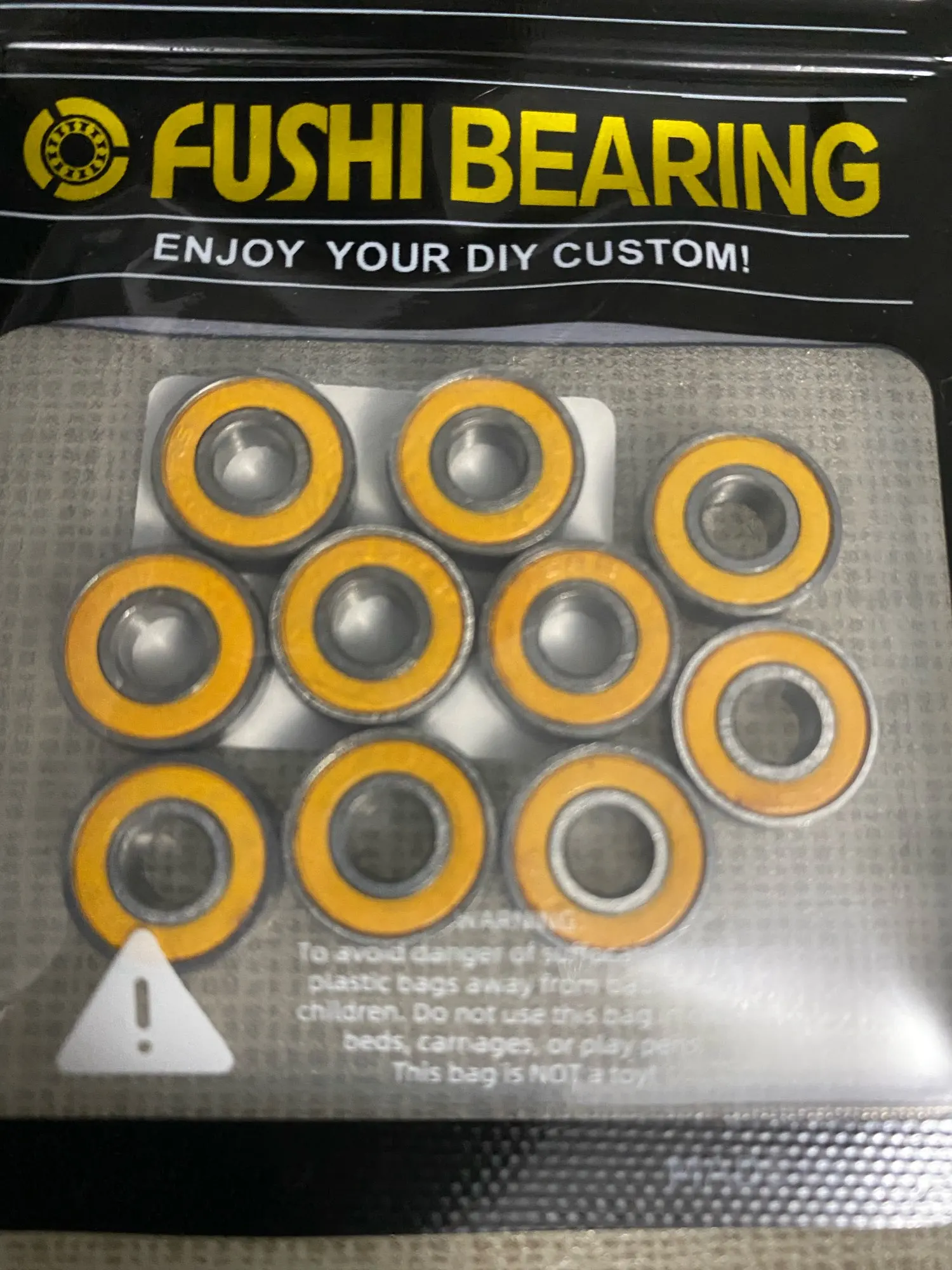

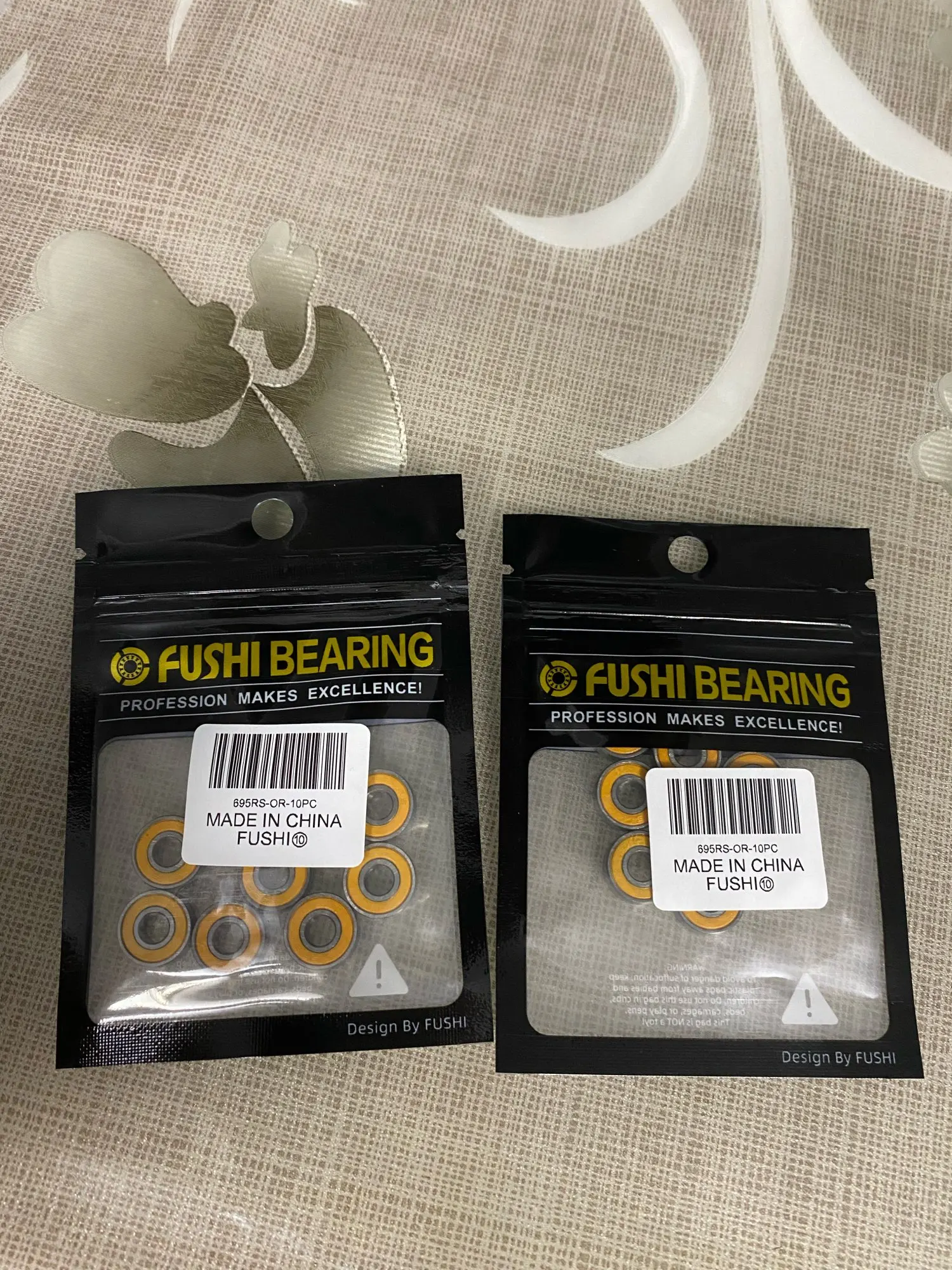

Photos of buyers

35 more
photos

Specifications

  • Brand Name: FUSHI
  • Model Number: 695RS ABEC-3
  • Torque Capacity: 5x13x4mm
  • Structure: Deep Groove Ball
  • Coatings: Chrome Steel/GCr15
  • Surface Roughness: Ra 0.05
  • Material: 52100 Chrome Steel
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Sealed
  • Part Number: 695 2RS
  • For Shaft Diameter: 5mm
  • Bore Dia (d): 5mm
  • Bore Dia Tolerance: -0.008mm to 0
  • For Housing ID: 13mm
  • Outer Dia (D): 13mm
  • Outer Dia Tolerance: -0.008mm to 0
  • Width (B): 4mm
  • Width Tolerance: -0.12mm to 0
  • Ring Material: 52100 Chrome steel
  • Ball Material: 52100 Chrome steel
  • Cage Material: 300 Series Stainless Steel
  • Shield Material: 300 Series Stainless Steel
  • Dynamic Load Rating (Cr) (Newtons): 816
  • Static Load Rating (Cor) (Newtons): 246
  • Max Speed (Grease) (X1000 RPM): 13
  • Max Speed (Oil) (X1000 RPM): 15
  • Lubrication: grease
  • Shaft Mount Type: Press Fit
  • Temperature Range: -20 to 120
  • ABEC Rating: ABEC-1
  • Radial Clearance Trade No.: C0
  • Radial Clearance: 0.002mm to 0.013mm
  • Ball Qty: 8
  • Ball Dia: 2.0000mm
  • Weight (grams): 2.39
