Specifications
- Brand Name: Waveshare
- Demo Board Type: ARM
- Origin: CN(Origin)
- Interface: 2 x USB2.0
- Interface: HDMI/RCA Output
- Interface: TF Card Support
- Interface: USB OTG
- ROM Capacity: 16GB
- Memory Capacity: 4GB
- Processor Brand: AMLogic
- Intergrated Feature: 10/100/1000Mbps
- Intergrated Feature: WiFi 802.11b/g/n
- Intergrated Feature: IR Receiver
- Intergrated Feature: Bluetooth
- SoC: Amlogic A311D
- MCU: STM8S003 with Programmable EEPROM
- SPI Flash: 16MB
- LPDDR4/4X: 4GB
- EMMC 5.1: 32GB
- Wi-Fi: AP6398S Module 802.11
- Bluetooth: Bluetooth 5.0
- LAN: 10/100 / 1000M
- WOL: Wake on Lan
- TF Card: Molex Slot
- USB HOST: x2 (900mA & 500mA Load)
- USB Type-C: USB2.0 OTG & USB PD
- VIN Connector: System Power Input
- Wide Input Voltage: Range from 5V to 20V
- Touch Panel: 10 Pin 0.5mm Pitch FPC Connector
- Sensor: KXTJ3-1057 Tri-axis Digital Accelerometer
- IR Receiver: 2 Channels
- RTC & Battery Header: 0.8mm Pitch Header
- Cooling Fan Header: 4-Pins 0.8mm Pitch Header
- LEDs: Blue LED x1, White LED x1, Red LED x1
- 40-Pins Header(2.54mm): CPU: USB, I2C, I2S, SPDIF, UART, PWM, ADC MCU: SWIM, NRST, PA1
- Buttons: x3 (Power / Func / Reset)
- XPWR Pads: For External Power Button
- Mounting Holes: Size M2 x 4
- Board Dimensions: 82.0 x 58.0 x 11.5 mm
- Board Weight: 28.5g
- Linux: Mainline Linux (Linux 5.0+)
- Bootloader: Mainline U-Boot
- Linux Distros: Ubuntu 18.04+ / Armbian
- O/S for HTPC: LibreELEC
- Android: Android Pie (9.0)
- Khadas Only: Khadas TST/Khadas KBI/Fenix Script
- Certifications: CE, RoHS

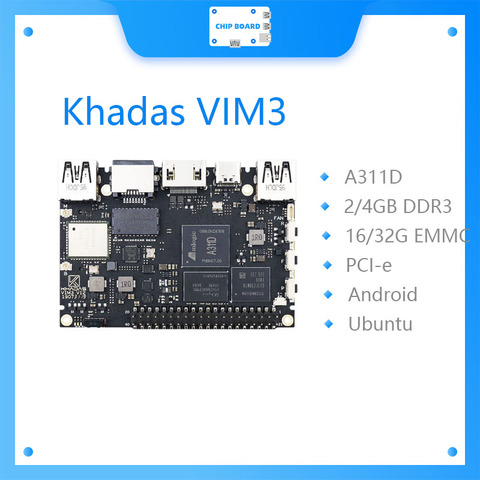

Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU
