Specifications
- Brand Name: Khadas
- Demo Board Type: ARM
- Interface: 2 x USB2.0
- Interface: TF Card Support
- Interface: HDMI/RCA Output
- Interface: USB OTG
- Processor Brand: AMLogic
- Model Number: VIM2 Max
- Intergrated Feature: 10/100/1000Mbps
- Intergrated Feature: Bluetooth
- Intergrated Feature: IR Receiver
- Intergrated Feature: WiFi 802.11b/g/n
- Chipset: Amlogic S912 ARM 64Bit Octa Core Cortex-A53
- RAM/ROM: 3GB DDR4 + 64GB EMMC-V5.0
- WiFi Module: AP6398S, 2X2 MIMO with RSDB, V5.0 Bluetooth
- Power Supply: USB Type-C with USB 2.0 OTG Support and DC in, 5V2A
- Video Processing: HW UHD H.265/VP9 60fps 10bit video decoder HDR10 and HLG HDR video pro
- WOL: Wake on Lan Supported
- MCU: STM8S003 with Programmable EEPROM
- HDMI CEC: Supported
- SPI Flash: 16MB
- FPC Connector: 10-Pins, 0.5mm Pitch, with I2C, IOs
- Pogo Pads Array: USB, I2C, DVB-Bus, IOs
- Pogo Pads MCU: SWIM, UART, ADC, NRST
- Pogo Pads for VIN: System Power Input
- 40-Pins I/O Header: 2.54mm, USB, I2C, I2S, SPDIF, UART, PWM, ADC, ISO7816
- USB2.0 HOST: x2 (900mA & 500mA Load)
- Wide Input Voltage: Range from 5V to 9V, Recommend 5.0V
- Current Limit Switch: Programmable, 3.0A as default (up to 4.0A)
- VIN (Extra Power IN): 4-Pins, 1.25mm Pitch Header
- RTC & Battery Header: 0.8mm Pitch Header
- Cooling Fan Header: 4-Pins 0.8mm Pitch Header, with PWM Speed Control
- Buttons: x3 (Power / Function for DIY / Reset)
- LEDs: Blue LED x1, White LED x1
- Mounting Holes: Size M2 x 4
- Board Dimensions: 82.0 x 57.5 x 11.5 mm
- O/S: Android, Ubuntu, Docker, Buildroot.

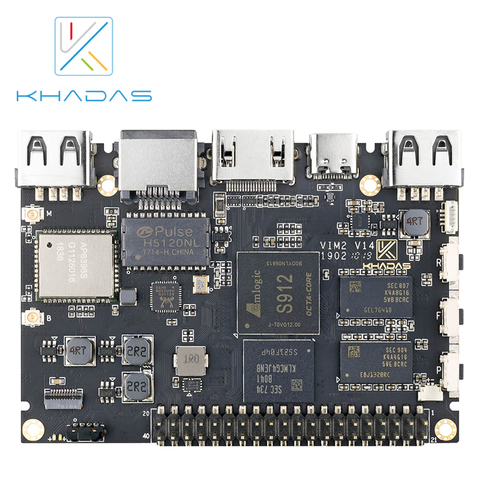

Khadas VIM2 Max Mini PC with Linux Ubuntu Mate 16.04 Support, Octa Core ARM Development Board DDR4 3GB eMMC 64GB AP6398S
99.90
$
