Specifications
- Brand Name: Khadas
- Demo Board Type: ARM
- Origin: CN(Origin)
- Interface: 2 x USB2.0
- Interface: HDMI/RCA Output
- Interface: TF Card Support
- Interface: USB OTG
- ROM Capacity: 16GB
- Processor Brand: AMLogic
- Model Number: VIM3L HTPC KIT
- Intergrated Feature: 10/100Mbps
- Intergrated Feature: 10/100/1000Mbps
- Intergrated Feature: WiFi 802.11b/g/n
- Intergrated Feature: Bluetooth
- SoC: Amlogic S905D3-N0N
- MCU: STM8S003
- LPDDR4/4X: 2GB
- EMMC 5.1: 16GB
- Wi-Fi: AP6398S Module
- Bluetooth: Bluetooth 5.0
- LAN: 10/100 / 1000M
- WOL: Wake on Lan
- TF Card: Molex Slot
- USB HOST: x2
- USB Type-C: USB2.0 OTG & USB PD
- VIN Connector: System Power Input
- Wide Input Voltage: Range from 5V to 20V
- HDMI: Type-A Female
- Touch Panel: 10 Pin 0.5mm Pitch FPC Connector
- Camera: 2 lanes MIPI-CSI
- MIPI-DSI: 4 lanes Interface
- Sensor: KXTJ3-1057
- IR Receiver: 2 Channels
- RTC & Battery Header: 0.8mm Pitch Header
- Cooling Fan Header: 4-Pins 0.8mm Pitch Header, with PWM Speed Control
- LEDs: Blue LED x1, White LED x1, Red LED x1
- Buttons: x3 (Power / Func / Reset)
- Mounting Holes: Size M2 x 4
- Board Dimensions: 82.0 x 58.0 x 11.5 mm
- Board Weight: 28.5g
- Linux: Mainline Linux (Linux 5.0+)
- Bootloader: Mainline U-Boot
- Linux Distros: Ubuntu 18.04+ / Armbian
- O/S for HTPC: LibreELEC(Linux-5.0+) / CoreELEC(Linux-4.9)
- Android: Android Pie (9.0)
- Certifications: CE, RoHS

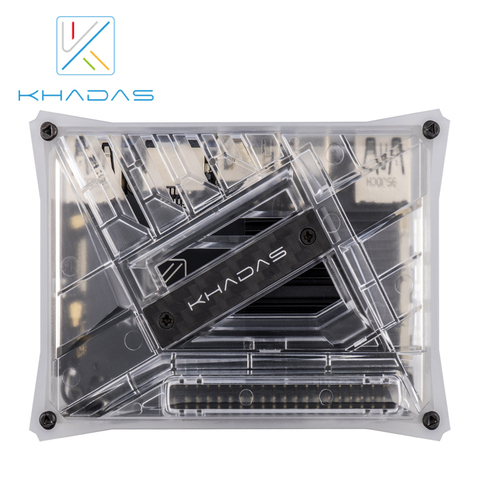

Khadas VIM3L HTPC KIT : Amlogic S905D3-N0N SBC with DIY Case
109.90
$
1
orders
/
9
reviews
Price history
- for 3 month
- for half a year
- Requires Alitools extension
The Alitools extension is required to keep track of an item and receive notifications when prices drop.
Price drop notification
104.41 $ (-5%)
104.41 $ (-5%)
98.91 $ (-10%)
93.42 $ (-15%)
87.92 $ (-20%)
Out telegram bot will notify you once the price drops to the desirable one
This item is from other sellers
Similar Products
Customer Reviews
A***s
January 17, 2021
The board itself is awesome. Kit is not, however: 1. no power brick - now I need to wait another month for power brick from china to use the board. 2. remote came without batteries and not working properly. 3. there is no thermopad between board and heatsink. So in general I don't recommend. Price for the board itself is OK, but neccecary components like heatsink are very overpriced. Hope Khadas will do something about it.
E***a
December 27, 2020
Excellent board, very compact size, more powerful, thanks seller...I love this system.
