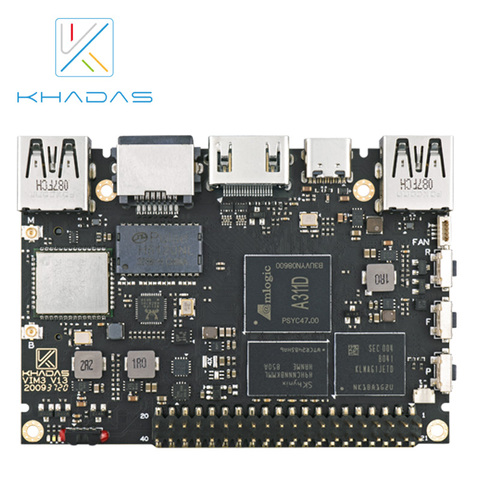

Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU | 4GB + 32GB(Pro Model) ► Photo 1/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU | 4GB + 32GB(Pro Model) ► Photo 1/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU | 4GB + 32GB(Pro Model) ► Photo 2/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU | 4GB + 32GB(Pro Model) ► Photo 3/5

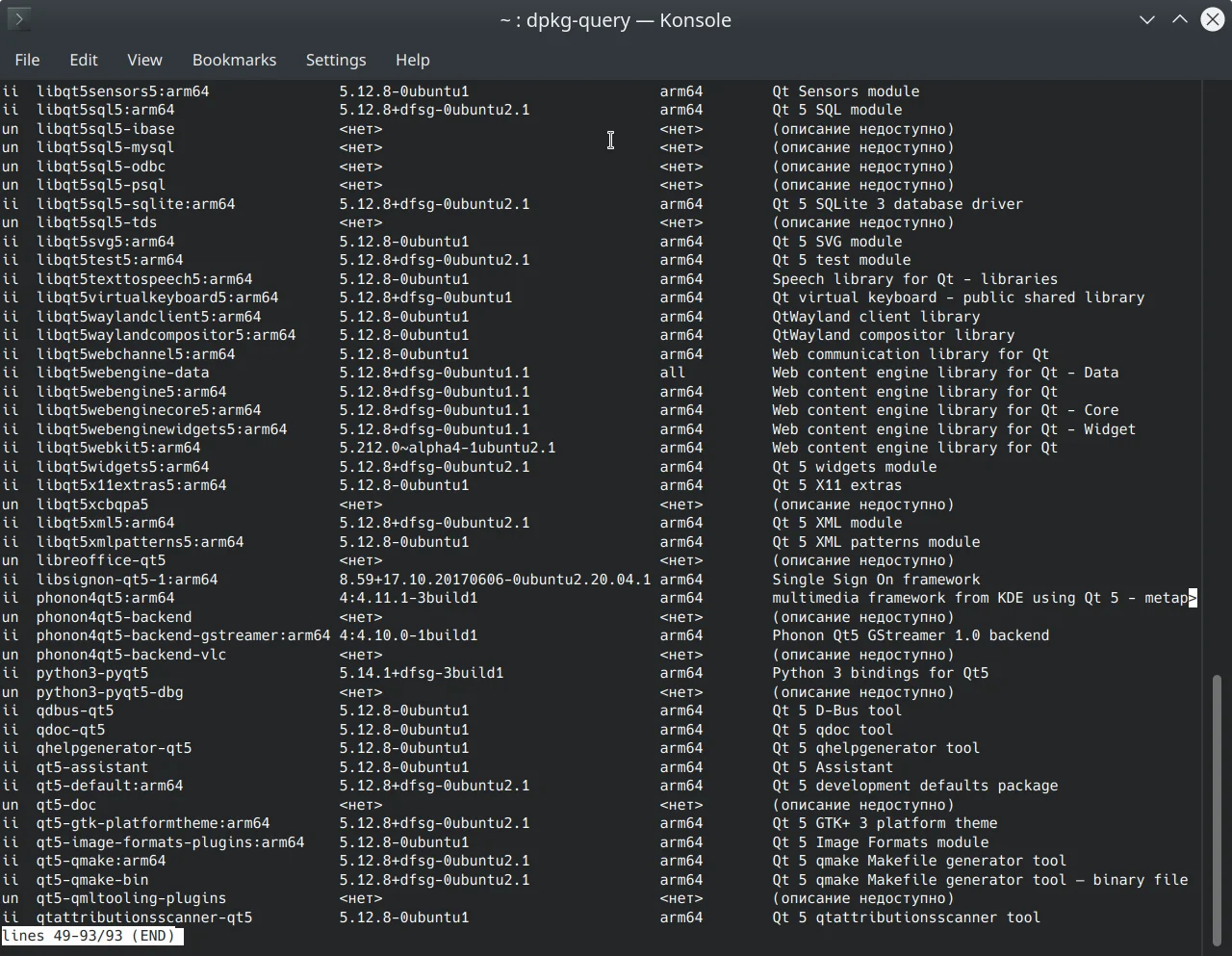

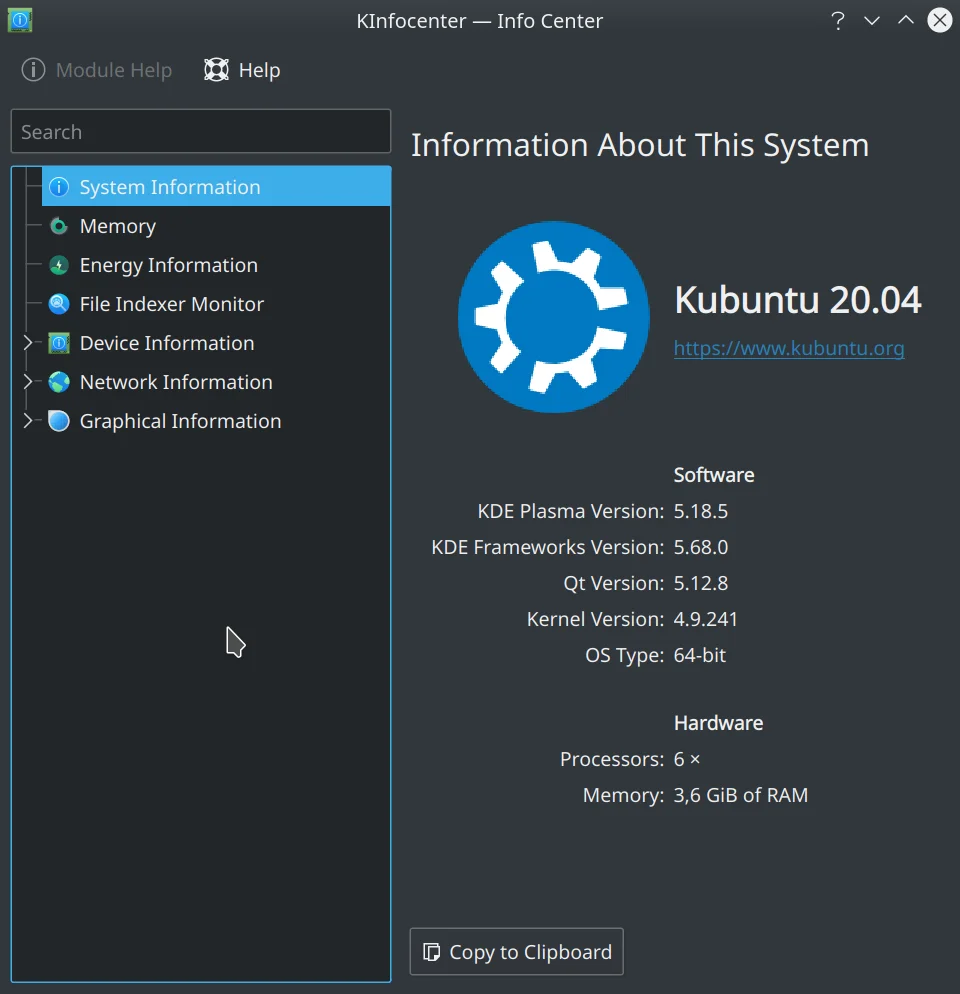

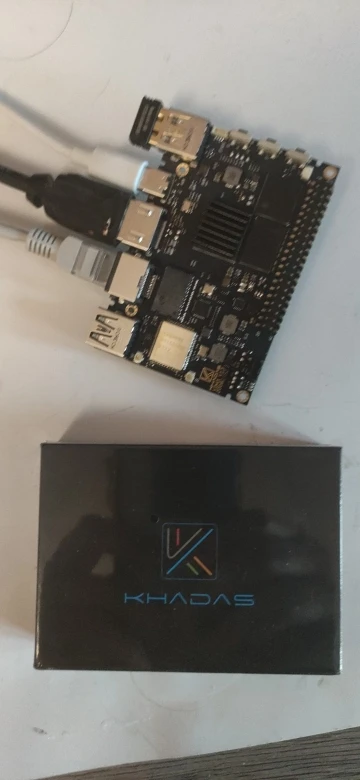

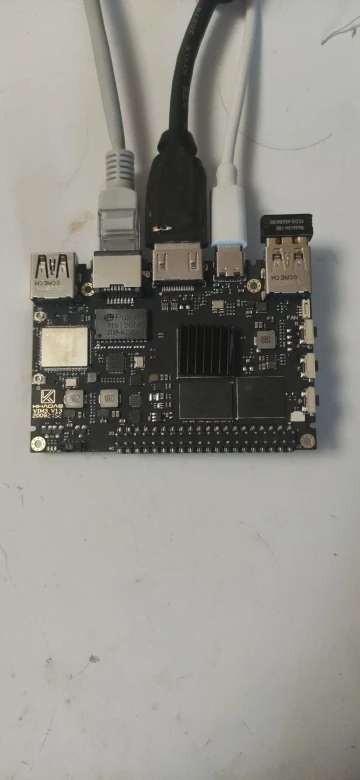

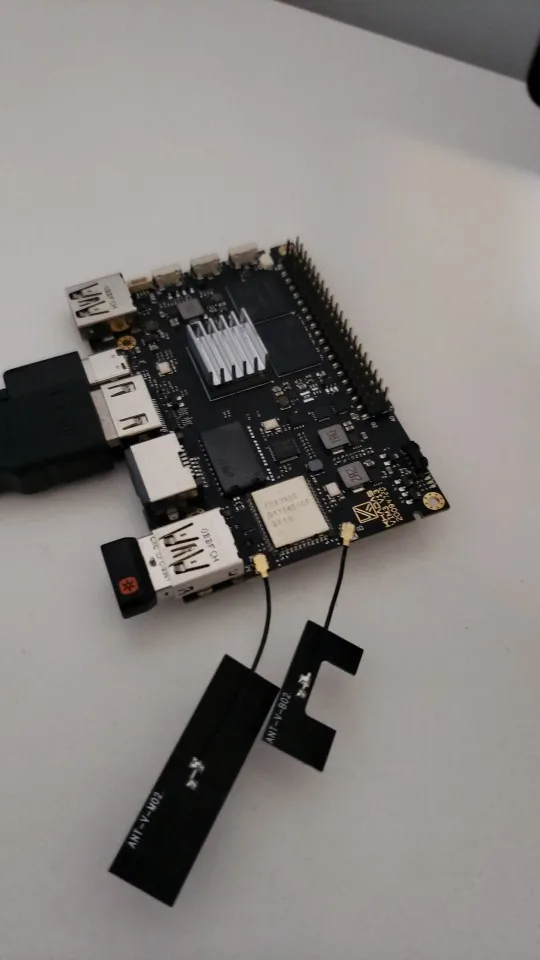

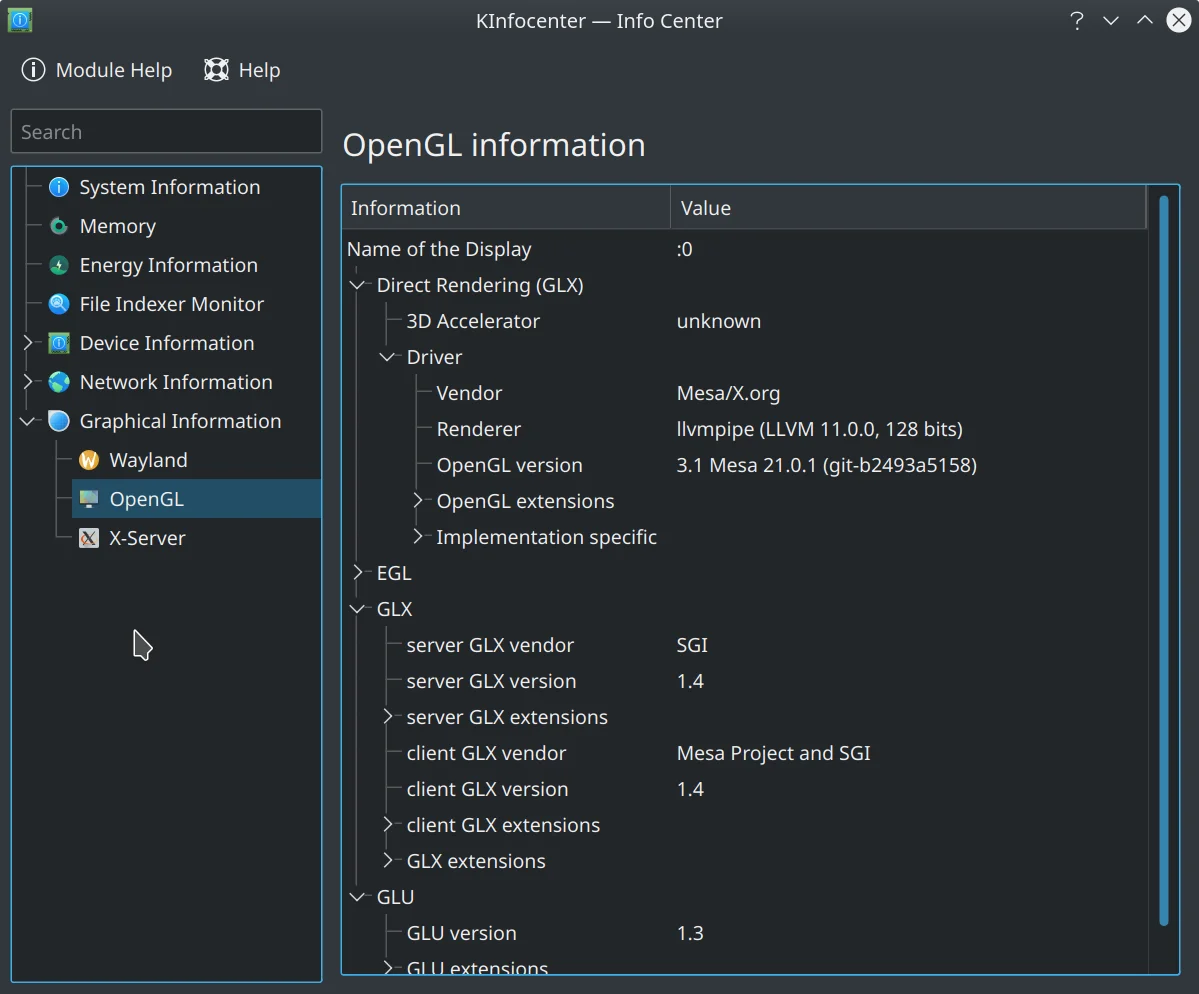

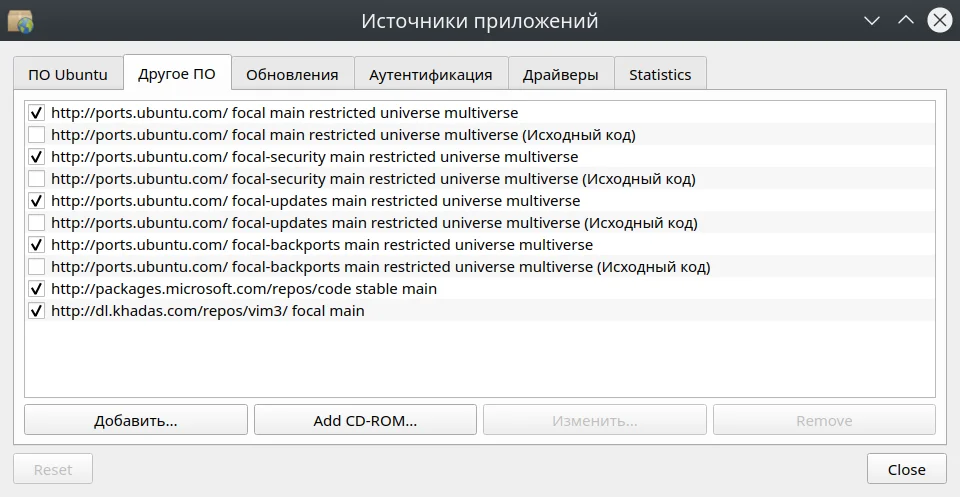

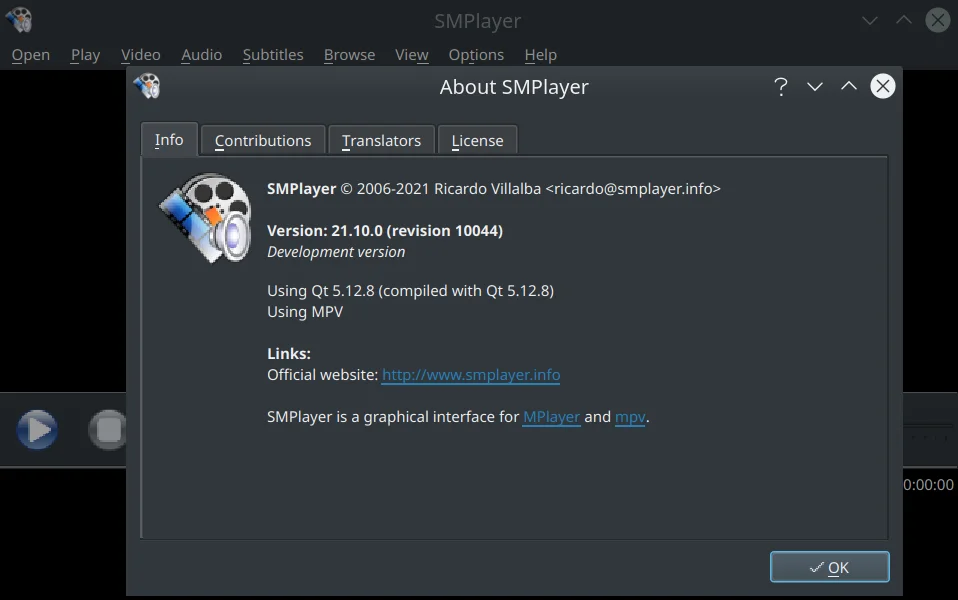

Photos of buyers

47 more
photos

Specifications

  • Brand Name: Khadas
  • Demo Board Type: ARM
  • Origin: CN(Origin)
  • Interface: 2 x USB2.0
  • Interface: HDMI/RCA Output
  • Interface: TF Card Support
  • Interface: USB OTG
  • ROM Capacity: 16GB
  • Memory Capacity: 4GB
  • Processor Brand: AMLogic
  • Intergrated Feature: 10/100/1000Mbps
  • Intergrated Feature: WiFi 802.11b/g/n
  • Intergrated Feature: IR Receiver
  • Intergrated Feature: Bluetooth
  • SoC: Amlogic A311D
  • MCU: STM8S003 with Programmable EEPROM
  • SPI Flash: 16MB
  • LPDDR4/4X: 4GB
  • EMMC 5.1: 32GB
  • Wi-Fi: AP6398S Module 802.11
  • Bluetooth: Bluetooth 5.0
  • LAN: 10/100 / 1000M
  • WOL: Wake on Lan
  • TF Card: Molex Slot
  • USB HOST: x2 (900mA & 500mA Load)
  • USB Type-C: USB2.0 OTG & USB PD
  • VIN Connector: System Power Input
  • Wide Input Voltage: Range from 5V to 20V
  • Touch Panel: 10 Pin 0.5mm Pitch FPC Connector
  • Sensor: KXTJ3-1057 Tri-axis Digital Accelerometer
  • IR Receiver: 2 Channels
  • RTC & Battery Header: 0.8mm Pitch Header
  • Cooling Fan Header: 4-Pins 0.8mm Pitch Header
  • LEDs: Blue LED x1, White LED x1, Red LED x1
  • 40-Pins Header(2.54mm): CPU: USB, I2C, I2S, SPDIF, UART, PWM, ADC MCU: SWIM, NRST, PA1
  • Buttons: x3 (Power / Func / Reset)
  • XPWR Pads: For External Power Button
  • Mounting Holes: Size M2 x 4
  • Board Dimensions: 82.0 x 58.0 x 11.5 mm
  • Board Weight: 28.5g
  • Linux: Mainline Linux (Linux 5.0+)
  • Bootloader: Mainline U-Boot
  • Linux Distros: Ubuntu 18.04+ / Armbian
  • O/S for HTPC: LibreELEC
  • Android: Android Pie (9.0)
  • Khadas Only: Khadas TST/Khadas KBI/Fenix Script
  • Certifications: CE, RoHS

Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU | 4GB + 32GB(Pro Model)

Seller:
Alitools rating:
79%
/
Aliexpress rating:
100%
105.00 139.00 $
18   orders
/
6   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

R***s
January 13, 2021

The build quality of this and all accompanying accessories is fantastic. I was pleasantly surprised at the quality and neatness of the packaging. One thing to note is the usbc and hdmi ports are very close together so I will need to find special cables with slim plugs in order to connect both. One thing I didn’t realise was that the TS050 touch display is not compatible with the DIY case as the case blocks the ribbon cable connection.

j***z
December 20, 2020

Good board, it has Android pre charged great to beging use it
