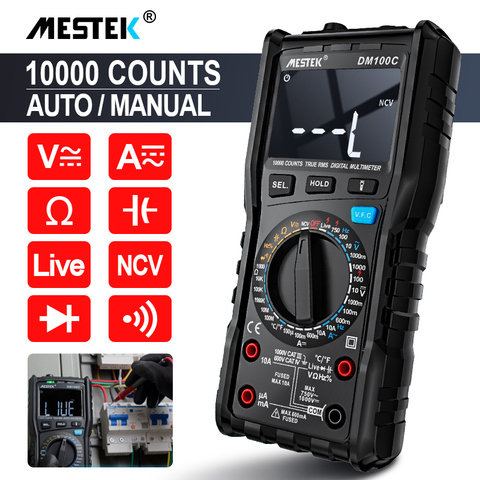

MESTEK DM100C True-RMS Digital Multimeter Button 10000 Count With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm manual/auto ► Photo 1/6
MESTEK DM100C True-RMS Digital Multimeter Button 10000 Count With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm manual/auto ► Photo 1/6
MESTEK DM100C True-RMS Digital Multimeter Button 10000 Count With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm manual/auto ► Photo 2/6
MESTEK DM100C True-RMS Digital Multimeter Button 10000 Count With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm manual/auto ► Photo 3/6

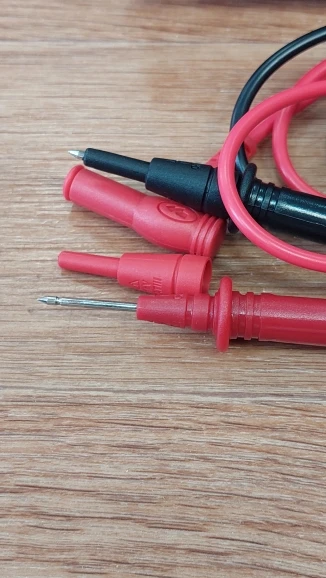

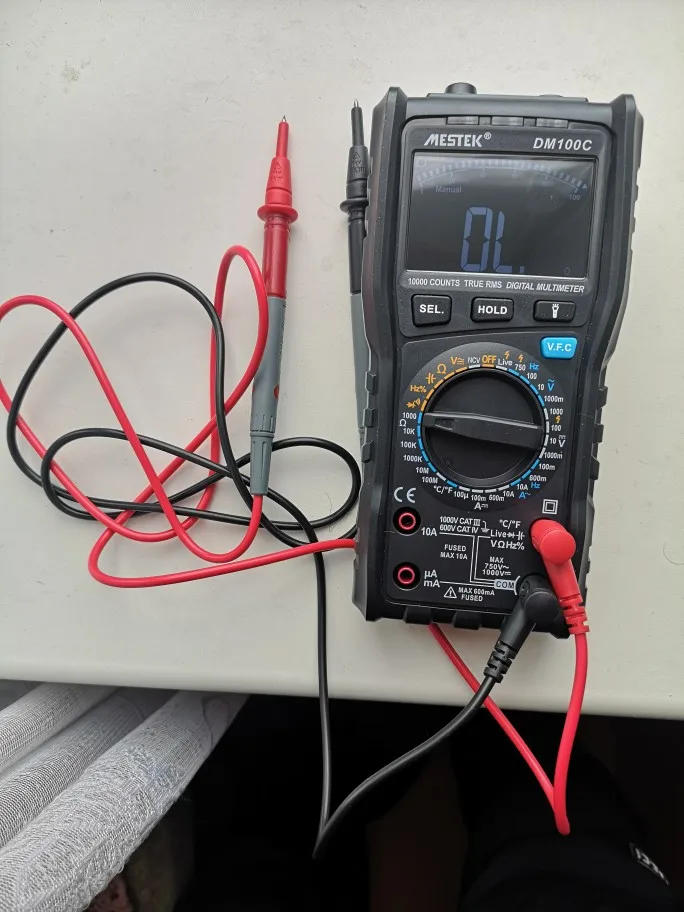

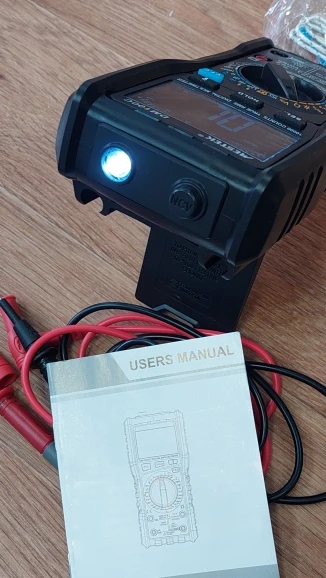

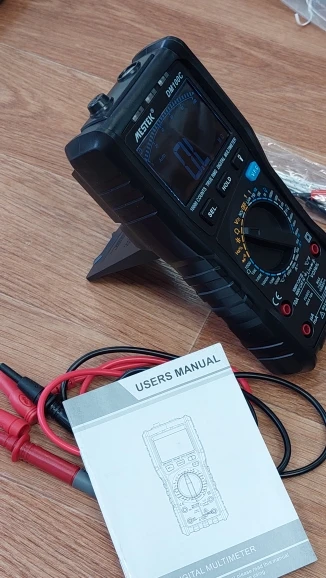

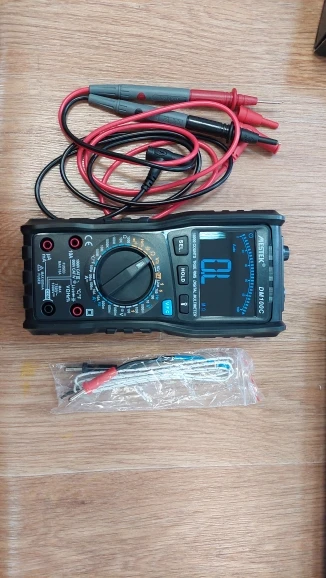

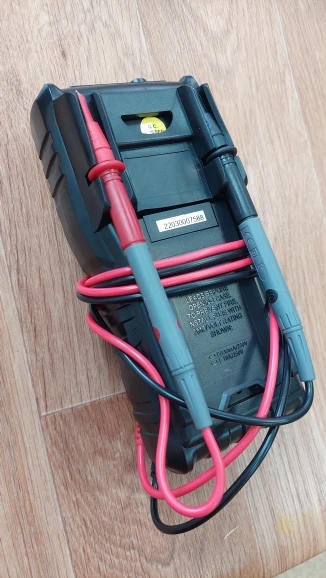

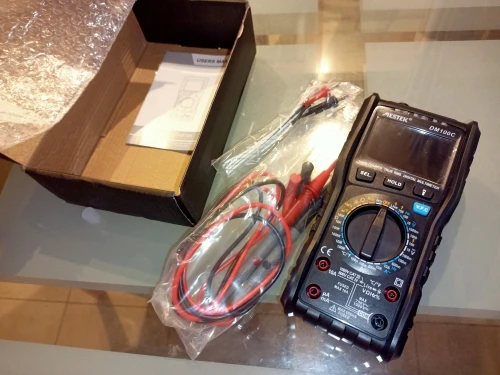

Photos of buyers

197 more
photos

Specifications

  • Brand Name: MESTEK
  • DIY Supplies: Electrical
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Origin: CN(Origin)
  • Model Number: DM100C
  • AC Current: 99.99mA/600mA/10.00A
  • Is Smart Device: no
  • AC Voltage: 999.9mV/9.999V/99.99V/750V
  • Measuring Resistance Range: 999.9/9.999K/99.99K/999.9K/9.999M/99.99M ohm
  • Operating Mode: manual/auto
  • Measuring Inductance Range: other
  • Display Type: Digital Display
  • DC Current: 99.99mA/99.99mA/600mA/10.00A
  • DC Voltage: 999.9mV/9.999V/99.99V/999.9V
  • Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/9.999mF/99.99mF
  • Dimensions: 185*80*40mm
  • Operating Temperature: 0 - 40 ℃
  • clamp: only for China warehouse
  • display count: 10000 count
  • ambient temperature: 0~60C
  • screen display: reverse display AV screen
  • environment humidity: 20~95%
  • battery measurement: 0~1.5V/0~9V
  • buzzer detection: 2kHz/2.7kHz/3V
  • True RMS: 1kHz
  • high speed sampling: sampling rate 10 times/second
  • fuse alarm: 600mA/10A
  • wrong insertion alarm: wrong plug display LUSE and buzzer alarm
  • flashlight: Yes
  • data retention: Yes
  • Automatic shut-down: 15 minutes without operation
  • NCV: non-contact AC voltage detection
  • LIVE: fire line identification
  • input resistance: 10Mohm
  • overload protection: less than 250v
  • under voltage prompt: less than 2.4V
  • Diode: 0.15V~3V
  • on-off beep: Have
  • Temperature measure: Only DM100C
  • Item 1: multimeter
  • Item 2: digital multimeter
  • Usage: multitester
  • Product name: multimetro
  • Note: clamp only for China warehouse
  • DM100C: Manual/Auto range,Temperature probe measure,Ambient temperature
  • DM100: Manual range,High speed measure,Ambient temperature and humidity
  • DM100A: Auto range and smart measure, 10000 counts

MESTEK DM100C True-RMS Digital Multimeter Button 10000 Count With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm manual/auto

Seller:
Alitools rating:
78%
/
Aliexpress rating:
100%
26.99 $
8   orders
/
1   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

Anonymous
January 16, 2021

Fast delivery and good quality

Y***k
January 14, 2021

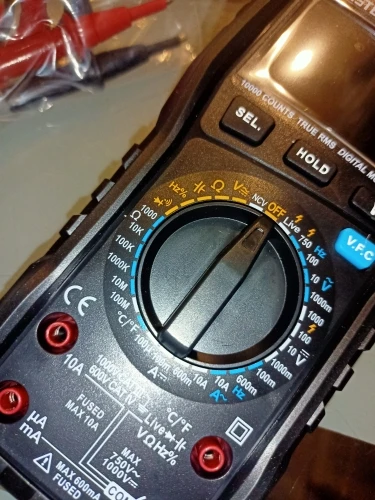

Some of the symbol on the dial are scratched and erased.

Anonymous
