Specifications
- Brand Name: MESTEK
- DIY Supplies: Electrical
- Certification: CE
- Certification: RoHS
- Origin: CN(Origin)

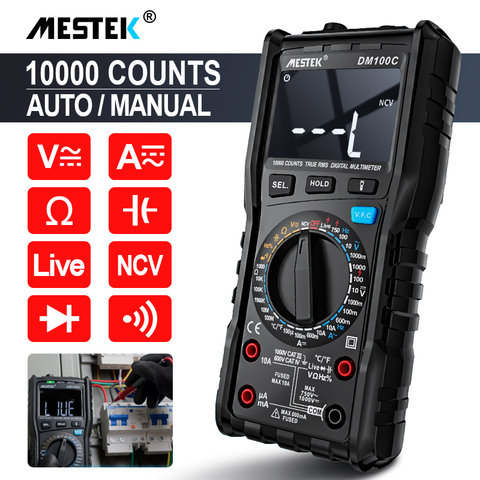

- Model Number: DM100C
- AC Current: 99.99mA/600mA/10.00A
- Is Smart Device: no
- AC Voltage: 999.9mV/9.999V/99.99V/750V
- Measuring Resistance Range: 999.9/9.999K/99.99K/999.9K/9.999M/99.99M ohm
- Operating Mode: manual/auto
- Measuring Inductance Range: as discription
- Display Type: Digital Display
- DC Current: 99.99mA/99.99mA/600mA/10.00A
- DC Voltage: 999.9mV/9.999V/99.99V/999.9V
- Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/9.999mF/99.99mF
- Dimensions: 185*80*40mm
- Operating Temperature: 0 - 40 ℃
- clamp: only for China warehouse
- display count: 10000 count
- ambient temperature: 0~60C
- screen display: reverse display AV screen
- battery measurement: 0~1.5V/0~9V
- environment humidity: 20~95%
- buzzer detection: 2kHz/2.7kHz/3V
- True RMS: 1kHz
- high speed sampling: sampling rate 10 times/second
- fuse alarm: 600mA/10A
- wrong insertion alarm: wrong plug display LUSE and buzzer alarm
- data retention: Yes
- flashlight: Yes
- Automatic shut-down: 15 minutes without operation
- NCV: non-contact AC voltage detection
- LIVE: fire line identification
- input resistance: 10Mohm
- overload protection: less than 250v
- under voltage prompt: less than 2.4V
- diode: 0.15V~3V
- on-off beep: Support
- Clamp: only for china warehouse
- DM100C: Manual/Auto range,Temperature probe measure,Ambient temperature
- DM100: Manual range,High speed measure,Ambient temperature and humidity
- DM100A: Auto range and smart measure, 10000 counts
Analog Smart Multimeter Digital True RMS NCV Automatic multimeter Resistance Voltage Temperature Multimetro Non-contact meter
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews
everything ok
It is a good multimeter with many functions. While test probes are not great quality leading to poor continuity test performance, alligator clip attachments are surprisingly included in the package also. Battery drain is quite high, even when switched off. It would be very good, but sadly the diode check function cannot be used to test LEDs; they do not light or are too dim to be visible and no forward voltage is displayed. It is written in the printed manual that diode test should output 1mA at 3.2V; however in person it instead measured 0.58mA at 2.3V. While it is possible to successfully test light LEDs using the 3V OUT buzzer test function, the forward voltage can not be displayed. Note that changing to new batteries did not affect these issues. Unfortunate flaws in an otherwise great device.
