Specifications
- Origin: CN(Origin)
- Certification: CCC
- Certification: ce
- Certification: CCC
- Certification: CE
- Certification: CCC
- Current / Phase: 4.2A
- Step Angle(degrees): 1.8
- Phase: 2
- Type: Hybrid
- Model Number: JSS57P2N
- Holding Torque: 200Ncm
- Name: JSS57P2N
- Phase: 2 Phase
- Lead wire: 4pcs
- Insulation resistance: 100MOhm(500V)
- Peak current: 6A
- Voltage: DC24~48V, recommended DC36V
- Frequency: 0~200KHz
- Current: 4.2A
- Encoder line number: 1000 line
- Motor length: 76mm
- Shaft Diameter: 8mm
- holding Torque: 2.2Nm

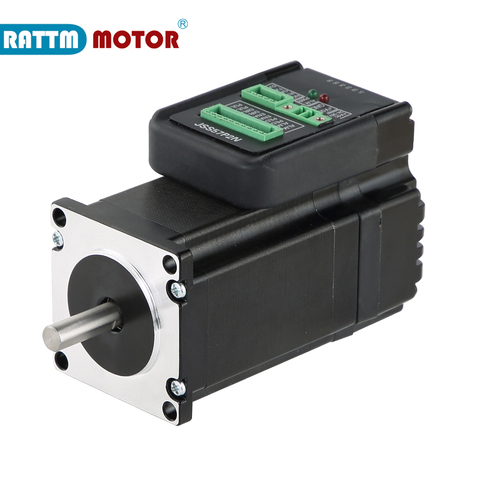

1pcs Nema23 JSS57P2N 2N Closed Loop Integrated Digital Hybrid Servo Stepper Motor 200KHZ 6A DC24V-48V Closed Loop Driver CNC
59.50
$
4
orders
/
2
reviews
