Specifications
- Brand Name: Rtelligent
- Certification: ce
- Current / Phase: 5.0A
- Step Angle(degrees): 1.8 degree
- Phase: 2
- Type: Hybrid
- Model Number: 60A4-30
- Holding Torque: 4.0N.M/ 40N.cm/ 40kgf.cm
- RATED VOLTAGE: 11V
- RESISTANCE: 2.2ohm AT25℃
- INDUCTANCE: 4.4mH AT 1kHz 1Vrms
- DIELECTRIC STRENTH: 500V A.C /MINUTE
- INSULATION RESISTANCE: Above 100MΩ / MIN.
- INSULATION CLASS: CLASS B
- TEMPERATURE RISE: 80K MAX
- OPERATION AMBIENT TEMP: -20℃ ~ +50℃
- ALLOWABLE THRUST LOAD: 5N
- ALLOWABLE RADIAL LOAD: 30N /ON THE SHAFT END
- OPERATION AMBIENT HUM: 15%~90%

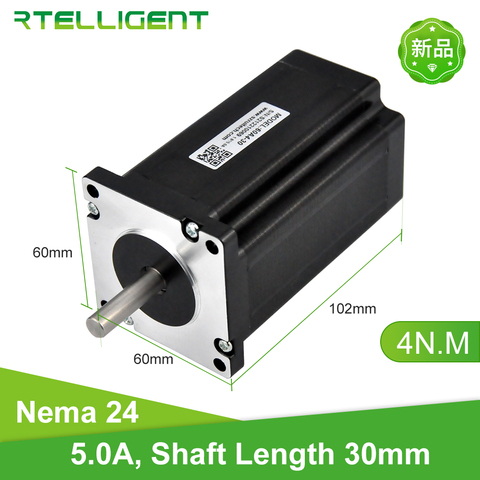

Rtelligent Nema 24 Stepper Motor 4.0N.M 40kg.cm 60x120mm 4 lead 5A Shaft Length 30mm Shaft Diameter 8mm for CNC merchine
