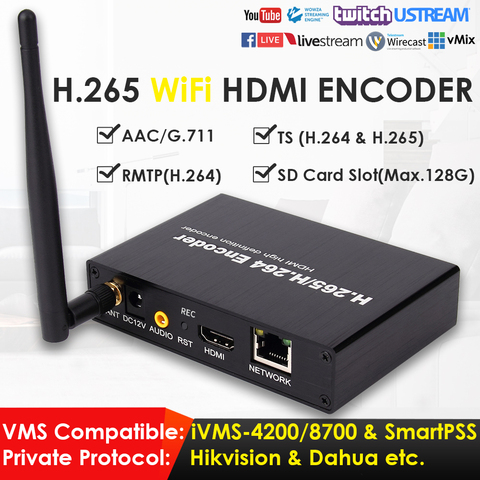

H.265/H.264 Беспроводной Wi-Fi 1080P HD HDMI видеокодер со слотом для SD-карты для IPTV/видеозаписи/прямой трансляции на YouTube Facebook ► Фото 1/5

H.265/H.264 Беспроводной Wi-Fi 1080P HD HDMI видеокодер со слотом для SD-карты для IPTV/видеозаписи/прямой трансляции на YouTube Facebook ► Фото 2/5

H.265/H.264 Беспроводной Wi-Fi 1080P HD HDMI видеокодер со слотом для SD-карты для IPTV/видеозаписи/прямой трансляции на YouTube Facebook ► Фото 3/5

Спецификации

Название бренда: aishanqian
Номер модели: ON-DMI-16EW
Audio Encoding: AAC, G.711U, G.711A
Audio I/O: 1ch Audio Input(3.5mm or HDMI), 1ch Audio Output
Audio/Video Outputs: HDMI
Bit Rate: CBR & VBR; 64kbps~12Mbps [Adjustable]
Browsers Supported: Edge, Chrome(Recommended), IE etc., Firefox
Color: Black
Features: Picture Viewing, Video Games,Firmware Upgradeable, Web Browsing
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]
HDMI: 1ch HDMI Video Input
Live Streaming Platform/Media Server: Facebook Live etc., Ustream, Twitch, Wowza,Youtube
Main Stream: 1920*1080, 1360*768, 1280*1024 etc., 1440*1050, 1440*900, 1600*900
Media Input Connectivity: Ethernet, HDMI
Media Streaming: Internet TV/Video
Mobile Stream: 720*576, 720*480, 704*576, 640*480 etc., 720*404, 720*540
Network Port: 1ch RJ45 10M/100M Self Adaptive Ethernet Port
Network Protocol: RTMP, DHCP,TCP/IP, RTP, ONVIF, DDNS, DNS, UDP, HTTP, RTSP, TS
Operating Humidity: <95%(Non-Condensing)
Operating System: Linux
Operating Temperature: -10C~55C (-14F~131F)
Power Supply: Powered by DC12V 1A or Higher
Private Protocol Compatible: Hikvision, Dahua
Processor: Dual Core
Processor Performance: 1080p@45fps(Hi3516E)
Recording: H.265 Recording by Hikvision or Dahua's NVR(Not Included)
Reset: 1ch Reset/Record Button
RTSP Stream (Main Stream): rtsp://192.168.1.120:554/Iive/0(Main Stream)
RTSP Stream (Sub Stream): rtsp://192.168.1.120:554/Iive/1(Sub Stream)
SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)
Sub Stream: 352*288, 640*352, 320*240, 640*480,704*576
TS Stream (Main Stream): http://192.168.1.120:80/ts/0(Main Stream)
TS Stream (Sub Stream): http://192.168.1.120:80/ts/1(Sub Stream)
UDP Multicast: udp://@224.1.2.3:10000
Video Encoding: H.264,H.265
VMS Compatible: SmartPSS(Dahua),iVMS-4200/8700(Hikvision)
