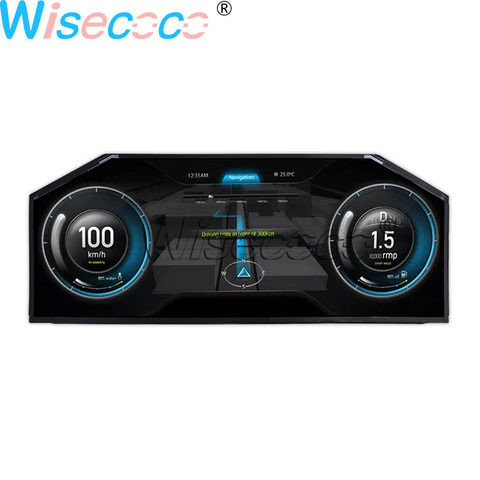

Wisecoco 12.3 inch Irregular 1920×720 IPS LCD screen 780 nits Mini LVDS 20 pins for Automotive Display ► Photo 1/4
Wisecoco 12.3 inch Irregular 1920×720 IPS LCD screen 780 nits Mini LVDS 20 pins for Automotive Display ► Photo 1/4
Wisecoco 12.3 inch Irregular 1920×720 IPS LCD screen 780 nits Mini LVDS 20 pins for Automotive Display ► Photo 2/4
Wisecoco 12.3 inch Irregular 1920×720 IPS LCD screen 780 nits Mini LVDS 20 pins for Automotive Display ► Photo 3/4

Specifications

  • Brand Name: Wisecoco
  • Material: TFT
  • Model Number: LA123WF5-SL01
  • Type: LCDs
  • Touch Screen Type: Capacitive Screen
  • Item Condition: New
  • Screen: > 3"
  • LCD Kit: Yes
  • Diagonal Size: 12.3 inch
  • Type: a-Si TFT-LCD, LCM
  • Pixel Format: 1920(RGB)*720
  • Configuration: RGB Vertical Stripe
  • Active Area: 292.032(H)*109.512(V) mm
  • Bezel Area: 295.032(H)*112.512(V) mm
  • Treatment: Hard coating (3H)
  • Luminance: 780 nits
  • Contrast Ratio: 800:1
  • View Direction: Symmetry
  • Viewing Angle: 85/85/85/85
  • Operating Mode: IPS, Normally Black, Transmissive
  • Support Color: 16.7M 85% NTSC
  • Light Source: WLED [11S4P] , 10K hours
  • Interface Type: 20 pins Mini LVDS , Connector
  • Operating Temperature: -40 ~ 85 °C
  • Storage Temperature: -40 ~ 90 °C

Wisecoco 12.3 inch Irregular 1920×720 IPS LCD screen 780 nits Mini LVDS 20 pins for Automotive Display
