Specifications

  • Brand Name: Wisecoco
  • Touch Screen Type: Capacitive Screen
  • Item Condition: New
  • Material: IPS
  • Model Number: HSD123KPW1-A30
  • Type: LCDs
  • Display Resolution: 1920x1080
  • Screen: > 3"
  • LCD Kit: Yes
  • Panel Size: 12.3"
  • Panel Type: a-Si TFT-LCD , LCM
  • Resolution: 1920(RGB)*720
  • Pixel Format: RGB Vertical Stripe
  • Display Area: 292.032(W)*109.512(H) mm
  • Bezel Opening: 294.8(W)*112.1(H) mm
  • Outline Size: 308.1(W)*130(H) *15.6(D) mm
  • Brightness: 850 (Typ.)
  • Contrast Ratio: 1000:1 (Typ.) (TM)
  • Viewing Angle: 85/85/85/85 (Typ.)
  • Display Mode: IPS Pro, Normally Black, Transmissive
  • Signal Interface: LVDS (2 ch, 8-bit) , 50 pins , Connector

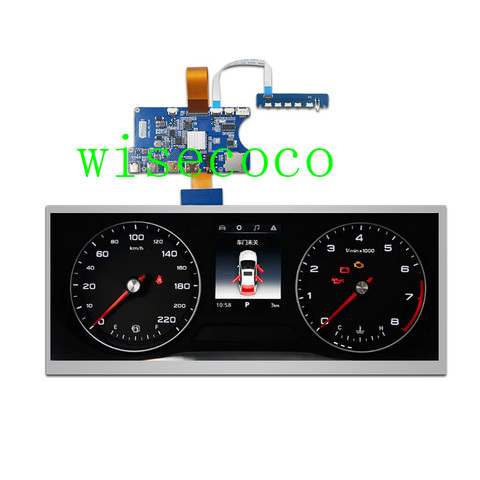

12.3" inch IPS 1920*720 HSD123KPW1-A30 LCD Display Type-C power LVDS controller board bar screen

Seller:
Alitools rating:
15%
/
Aliexpress rating:
70%
33.54 129.44 $
5   orders
/
2   reviews
Rating: 3.5
