Specifications
- Brand Name: Waveshare
- Demo Board Type: ARM
- Interface: 2 x USB2.0
- Interface: HDMI-compatible/RCA Output
- Interface: TF Card Support
- ROM Capacity: 16GB
- Memory Capacity: 2GB
- Processor Brand: Rockchip
- Model Number: Edge-v Basic
- Intergrated Feature: 10/100Mbps
- Intergrated Feature: 10/100/1000Mbps
- Intergrated Feature: Bluetooth
- SoC: Rockchip RK3399
- MCU: 8bit STM8S003
- LPDDR4: 2GB
- EMMC 5.1: 16GB
- Wi-Fi: AP6356S
- Ethernet PHY: 10/100/1000M RTL8211FD
- HDMI CEC: Yes
- USB HOST: USB3.0x1, USB2.0x1
- Input Voltage: 5V to 20V
- Pogo Pads for VIN: System Power Input
- Buttons: x3 (Power, Func, Reset)
- Touch Panel: 10PIN 0.5mm Pitch FPC Connector
- M.2 Socket: 4 full-duplex lane PCIe 2.1 M.2 2280 NVMe SSD Supported
- LAN: 10/100/1000M, Support WOL Feature
- TF Card: SD 3.0, up to 256GB
- RTC Battery Header: 0.8mm Pitch Header
- IR Receiver: 2 Channels
- Mounting Holes: Size M2 x 4
- Board Dimensions: 82.0 x 58.0 x 13.5 mm
- Board Weight: 31g
- O/S: Android ,Ubuntu,Debian
- Linux: Mainline Linux
- BootLoader: Mainline U-Boot
- Certifications: CE, FCC, RoHS

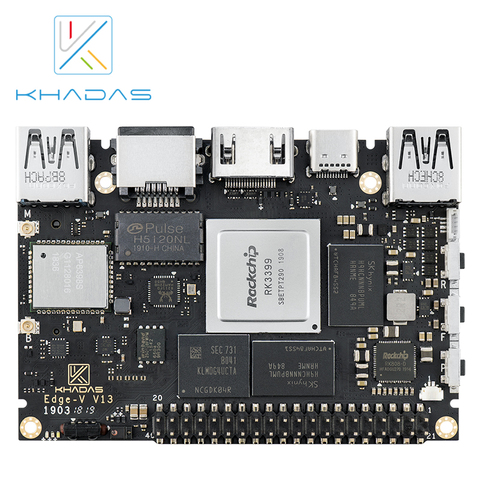

Khadas SBC Edge-V Rockchip RK3399 5.1 Mouldboard
