Specifications
- Brand Name: Waveshare
- Demo Board Type: ARM
- Processor Brand: Rockchip
- Model Number: Edge Max
- Intergrated Feature: 10/100/1000Mbps
- Intergrated Feature: Bluetooth
- Intergrated Feature: WiFi 802.11b/g/n
- MCU: 8bit STM8S003 with Programmable EEPROM
- SPI Flash: 16MB
- LPDDR4: 4GB
- EMMC 5.1: 128GB
- Wi-Fi: AP6356S, 802.11a/b/g/n/ac 2X2 MIMO with RSDB
- Bluetooth: V5.0
- Ethernet PHY: 10/100/1000M RTL8211FD
- HDMI 2.0a: Type-A Female, up to 4K@60Hz, HDCP 2.2
- HDMI CEC: Yes
- USB HOST: USB3.0x1, USB2.0x1
- USB Type-C: One for Power only; One with DP1.2 support
- Input Voltage Range: 5V to 20V
- Battery Connector: 2-Cell Battery Module
- Pogo Pads for VIN: System Power Input
- Cooling Fan Header: Controlled by PWM, with a 0.8mm Pitch Header
- Buttons: x3 (Power, Function, Reset)
- Programmable LEDs: Blue LED x1, White LED x1
- FPC Connector A: 10-Pins, 0.5mm Pitch, with UART, I2C, SPI, SDMMC, ADC, PWM, IOs
- FPC Connector B: 10-Pins, 0.5mm Pitch, with USB, I2S(8ch), I2C, MCU IOs
- Board Dimensions: 82.0 x 57.5 x 5.7 mm
- Board Weight: 25g
- O/S: Android Oreo, Ubuntu 18.04, Debian 9.0, and more
- Linux Kernel: Mainline Linux
- Boot Loader: Mainline U-Boot
- AI Features: Tensorflow, Android NN (Neural Networks API)
- Certifications: CE, FCC, ROHS

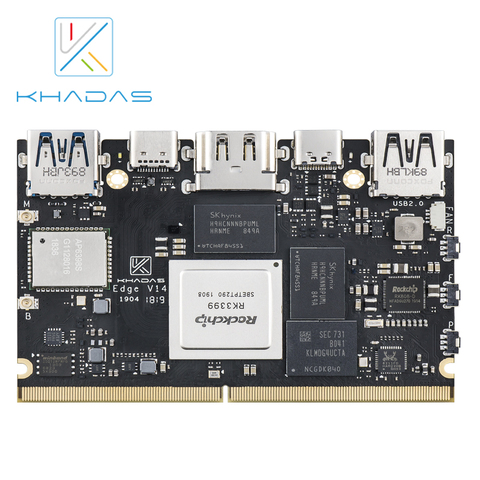

Khadas Edge Max with 128GB EMMC 5.1 RK3399 Soc Single Board Computer
220.40
–
248.57
$
