Specifications
- Brand Name: Scodeno
- Origin: CN(Origin)
- Model Number: XPTN-9000-65-2GX8GP
- Transmission Rate: 10/100/1000Mbps
- Number of Interfaces: 9
- VLAN: YES
- Certification: CE ROHS FCC
- Switch Type: Gigabit Switch
- Switch Capacity: 26G
- Package: Yes
- Communication Mode: Full-Duplex & Half-Duplex
- Fixed port: 2*1000 Base-X & 8*10/100/1000Base-T
- Power interface: Phoenix terminal, redundant dual power supply
- LED Indicators: PWR, OPT, NMC, ALM
- Twisted-pair: 0-100m (CAT5e,CAT6)
- Ring topology: Unsupported
- Star topology: Support
- Bus topology: Support
- Tree Topology: Support
- Hybrid topology: Support
- Input voltage: DC10-58V(Non-PoE), DC48~58V(PoE)
- Total Power consumption: <6W(Non-PoE); PoE <246W(PoE)
- Voltage Alarm: Support
- PoE port: 1-8
- PoE Protocol: 802.3af, 802.3at
- Pin Assignment: 1, 2, 3, 6
- PoE Mode: Standard & non-standard are supported
- Switching capacity: 26G
- Packet forwarding rate: 19.34Mpps
- MAC address table: 16K
- Buffer: 2M
- Forwarding delay: <5us
- MDX/MIDX: Support
- Flow control: Support
- Jumbo Frame: Support 110K Bytes
- WatchDog: Support
- Operating temperature: -40℃~+75℃
- Storage temperature: -40℃~+85℃
- Relative humidity: 5%~95% non-condensing
- Thermal methods: Fanless, natural cooling
- MTBF: 100,000 hours
- Product size: 65*104*143mm
- Installation Method: DIN rail
- Weight: 0.75KG
- IP Level: IP40
- Surge protection of Power: IEC 61000-4-5 Level X (10KV/10KV)(8/20us)
- Surge protection of Ethernet port: IEC 61000-4-5 Level X (6KV/4KV) (10/700us)
- RS: IEC 61000-4-3 Level 3 (10V/m)
- EFI: IEC 61000-4-4 Level 3 (1V/2V)
- CS: IEC 61000-4-6 Level 3 (10V/m)
- PFMF: IEC 61000-4-8 Level 4 (30A/m)
- DIP: IEC 61000-4-11 Level 3 (10V)
- ESD: IEC 61000-4-2 Level 4 (8k/15k)
- Free fall: 0.5m
- Authentication: CCC, CE, FCC, RoHS

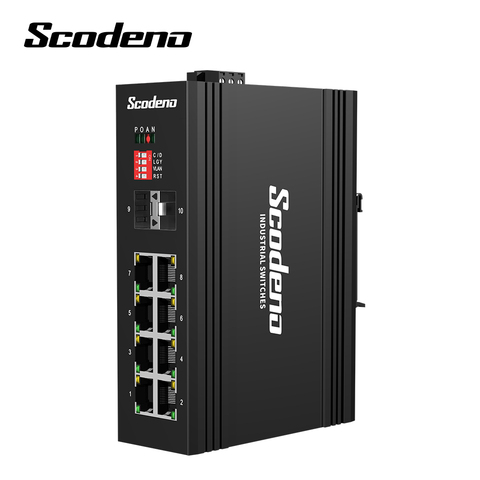

Industrial Ethernet PoE Gigabit Switch 250W Power Budget 8 RJ45 Ports DIN rail IP40
116.00
–
250.00
$
1
orders
/
1
reviews
