Specifications
- Brand Name: Scodeno
- Origin: CN(Origin)
- Model Number: XPTN-9000-75-4GX8GP-V
- Transmission Rate: 10/100/1000Mbps
- Number of Interfaces: 13
- VLAN: YES
- Certification: CE ROHS FCC
- Switch Type: Gigabit Switch
- Switch Capacity: 2G
- Package: Yes
- Communication Mode: Full-Duplex & Half-Duplex
- Input Voltage: DC12~58V(Non-PoE), DC48~58V(PoE)
- Operating Temperature: -40℃ ~ +75℃
- Shell: IP40 protection, fanless design
- Anti-static: 8KV-15KV
- MTBF: 100000 Hours
- Fixed port: 4*1000 Base-X, 8*10/100/1000 Base-T
- Management Port: Support Console
- Power interface: Phoenix terminal, dual power input
- LED Indicators: PWR, Link/ACT LED
- Twisted-pair: 0-100m (CAT5e,CAT6)
- Monomode optical fiber: 20/40/60/80/100KM
- Multimode optical fibre: 550m
- Ring topology: Support
- Star topology: Support
- Bus topology: Support
- Tree Topology: Support
- Hybrid topology: Support
- Total Power consumption: <10W (Non-PoE), <250W (PoE)
- PoE port: 1-8
- PoE Protocol: 802.3af, 802.3at
- Pin Assignment: 1,2,3,6
- PoE Management: Support
- Packet forwarding rate: 26.78Mpps
- MAC address table: 16K
- VLAN: Support 4K
- Buffer: 12M
- Forwarding delay: <10us
- MDX/MIDX: Support
- Flow control: Support
- Jumbo Frame: Support 10Kbytes
- Spanning Tree: Support STP/RSTP/MST
- Ring Protocol: Support ERPS
- Link Aggregation: Support 12 group
- Multicast: Support IGMP Snooping
- Port Mirroring: Support
- Storm Control: Support
- Interface Counters: Support
- QINQ: Support
- 802.1X: Support
- MAC Authentication: Support
- Port Isolation: Support
- RMON: Support
- NTP Client: Support
- DHCP CLIENT: Support
- DHCP snooping: Support
- Ping/tracert test: Support
- Dying gasp: Support
- DDM: Support
- ACL: ACL 500 & IP standard/extended & MAC extended ACL
- QoS: re-making&priority mapping&SP/WRR queue scheduling
- CLI: Support
- Console: Support
- Management IP: Support IPv4/IPv6
- Telnet/SSH: Support
- WEB management: Support
- SNMP: SNMPv1/v2c/v3
- User Management: Support
- System Log: Support
- Configuration File Download/Upload: Support
- Upgrade Firmware: Support
- Operating temperature: -40℃~+75℃
- Storage temperature: -40℃~+85℃
- Relative humidity: 5%~95%(non-condensing)
- Thermal methods: Fanless, natural cooling
- Product size: 48X104X143mm
- Installation Method: DIN-rail
- Weight: 0.58KG
- IP Level: IP40
- Surge protection of Power: IEC 61000-4-5 Level X (6KV/6KV)(8/20us)
- Surge protection of Ethernet port: IEC 61000-4-5 Level 4 (4KV/4KV)(10/700us)
- RS: IEC 61000-4-3 Level 3 10V/m)
- EFI: IEC 61000-4-4 Level 3 (1V/2V)
- CS: IEC 61000-4-6 Level 3 (10V/m)
- PFMF: IEC 61000-4-8 Level 4 (30A/m)
- DIP: IEC 61000-4-11 Level 3 (10V)
- ESD: IEC 61000-4-2 Level (8K/15K)
- Free fall: 0.5m
- Authentication: CCC/CE/FCC/RoHS

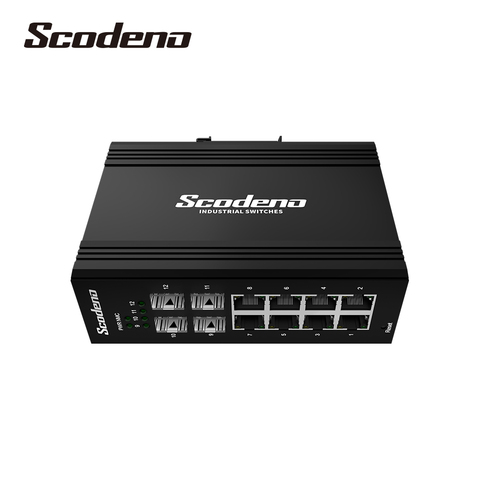

Industrial Gigabit PoE+ DIN-Rail Network Managed Switch 8 RJ45 Ports 4 SFP Slot 250 W Power Budget IP40
