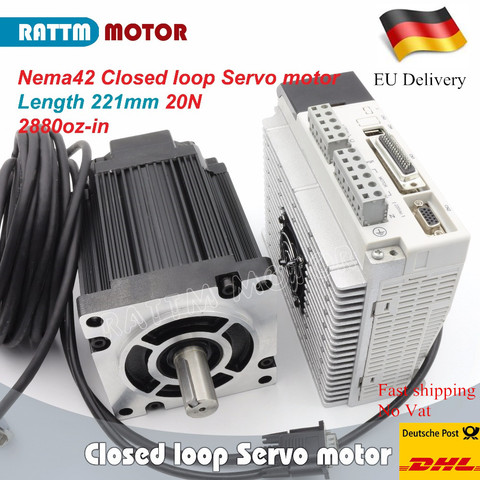

EU ship Closed-loop stepper motor Nema 42 Servo motor 20N.m/2880oz-in 3-Phase Hybrid stepper motor CNC kit ► Photo 1/5
EU ship Closed-loop stepper motor Nema 42 Servo motor 20N.m/2880oz-in 3-Phase Hybrid stepper motor CNC kit ► Photo 1/5
EU ship Closed-loop stepper motor Nema 42 Servo motor 20N.m/2880oz-in 3-Phase Hybrid stepper motor CNC kit ► Photo 2/5
EU ship Closed-loop stepper motor Nema 42 Servo motor 20N.m/2880oz-in 3-Phase Hybrid stepper motor CNC kit ► Photo 3/5

Specifications

  • Brand Name: RATTMMOTOR
  • Certification: ROHS
  • Certification: ISO
  • Certification: ce
  • Certification: CCC
  • Current / Phase: 4.2A
  • Step Angle(degrees): 1.2
  • Phase: 3
  • Type: Hybrid
  • Model Number: 110HCE221
  • Holding Torque: 20N.m/ 2880oz-in
  • Name: Nema42 110HCE Closed loop motor
  • Motor size: 110x110x221mm
  • Lead wire: 4pcs
  • Insulation resistance: 100MOhm(500V)
  • Servo Driver: HSS2260 3-Phase Hybrid Stepper Servo Driver
  • Peak current: 6.0A
  • Voltage: AC150~240V
  • Frequency: 0~200KHz
  • Input current: 7~20mA
  • Micro step: 400-60000 pulse/rev

EU ship Closed-loop stepper motor Nema 42 Servo motor 20N.m/2880oz-in 3-Phase Hybrid stepper motor CNC kit
