Specifications
- Brand Name: BTMETER
- DIY Supplies: Electrical
- Certification: NONE
- Origin: CN(Origin)
- Model Number: BT-770K
- AC Current: 60mA/600mA/20A
- AC Voltage: 600mV/6V/60V/600V/750V
- Measuring Resistance Range: 600/6K/60K/600K/6M/60M
- Operating Mode: AUTO
- Display Type: Digital Display
- DC Current: 600μA/6000μA/60mA/600mA/6A/20A
- DC Voltage: 600mV/6V/60V/600V/1000V
- Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
- Dimensions: 195*88*40mm
- Operating Temperature: 0 - 50 ℃
- Measuring Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.9999MHz
- Duty Cycle: 1%~99.9%
- Display: 6000
- Diode Test: Yes
- Auto Power Off: Yes
- Function Switch Indicator Lamp: Yes
- Auto Back-Ligtht: Yes
- ms-PULSE: 0.1ms-10.0ms
- Tach: 600-12000RPM
- Weight: 350g

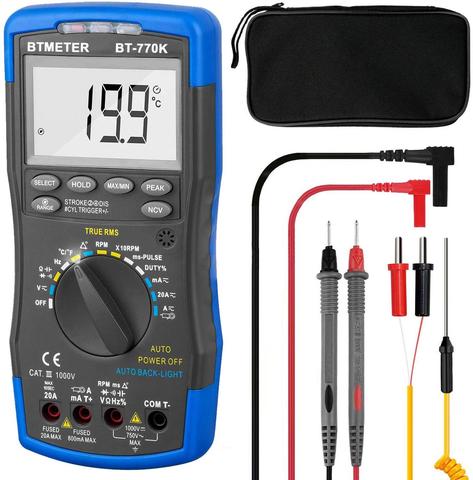

Auto Ranging Automotive Multimeter For Dwell Angle Pulse Width Tach Temperature Duty Cycle Voltage Current Resistance Test
45.99
$
14
orders
/
8
reviews
Price history
- for 3 month
- for half a year
- Requires Alitools extension
The Alitools extension is required to keep track of an item and receive notifications when prices drop.
Price drop notification
43.69 $ (-5%)
43.69 $ (-5%)
41.39 $ (-10%)
39.09 $ (-15%)
36.79 $ (-20%)
Out telegram bot will notify you once the price drops to the desirable one
This item is from other sellers
Similar Products
Customer Reviews
Anonymous
August 6, 2020
Have only used this for a couple of basic measurements (have yet to try Duty Cycle and Pulse Width) but so far, so good. It's quite light (weight) compared to more well known brands, but seems sturdy enough. The probes are good quality, the magnet on the back quite strong and the auto sensing lights for both screen back-lighting AND the dial are a nice feature. It's not as robust as the well-known yellow brand, but at this price and with the measuring set available, I'm happy to recommend it. Perfect for the home enthusiast.
