Specifications
- Brand Name: Aiyima
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Maximum Power Per Channel: NO POWER
- Model Number: DAC-A2
- Package: Yes
- Channels: 2 (2.0)

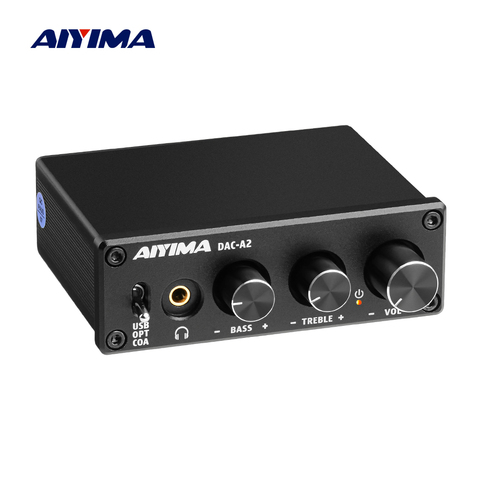

AIYIMA Audio Decoder Fiber Coaxial USB Decoder Bass Treble Adjustment DAC With Headphone Amplifier For Home Sound Theater
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews
Even with not ideal input characteristics, measured characteristics are much less than declared. RMAA test results, using Audigy2 card input: Frequency response (from 40 Hz to 15 kHz), dB: +4.25, -9.05 Noise level, dB (A):-75.2 Dynamic range, dB (A) :77.2 THD, % :0.061 THD + Noise, dB (A) :-60.7 IMD + Noise, % :0.324 Stereo crosstalk, dB:-60.5 IMD at 10 kHz, % :0.151
All tests are at 24bit 96KHz. First test was with IR channel, at half of the volume, retest with 100% volume control and usb input connected gave a slightly better result: Frequency response (from 40 Hz to 15 kHz), dB:+4.14, -9.15 Noise level, dB (A):-88.0; Dynamic range, dB (A):86.9; THD, %:0.048; THD + Noise, dB (A):-62.9; IMD + Noise, %:0.212; Stereo crosstalk, dB:-76.1; IMD at 10 kHz, %:0.108; Here is the USB mode test result, 100% volume. In this mode, Line-out signal level was less than 0,5V, i needed to gain about 10dB. Frequency response (from 40 Hz to 15 kHz), dB:+4.20, -9.16; Noise level, dB (A):-80.6; Dynamic range, dB (A):81.4; THD, %:0.039; THD + Noise, dB (A):-63.9; IMD + Noise, %:0.191; Stereo crosstalk, dB: -65.1; IMD at 10 kHz, %:0.088.
I'm very satisfied
