433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter ► Photo 1/6
433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter ► Photo 1/6
433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter ► Photo 2/6
433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter ► Photo 3/6

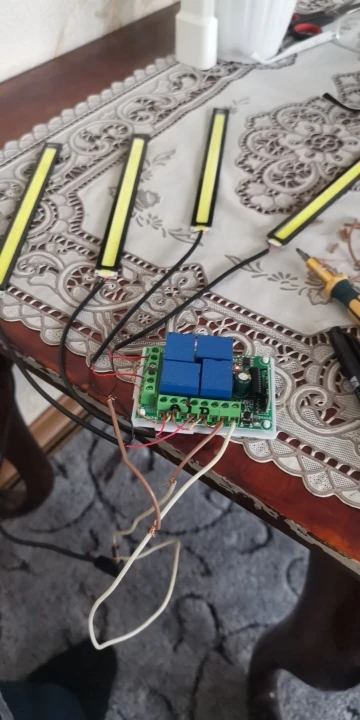

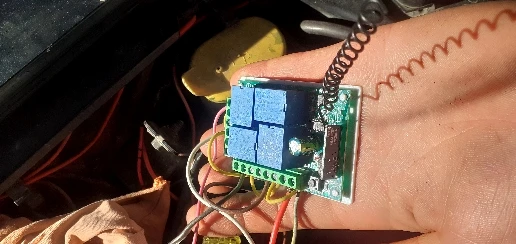

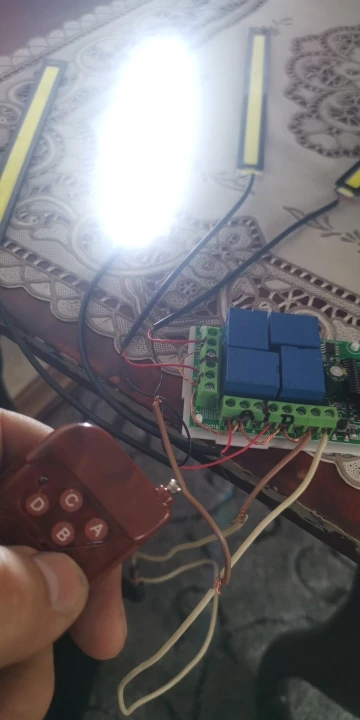

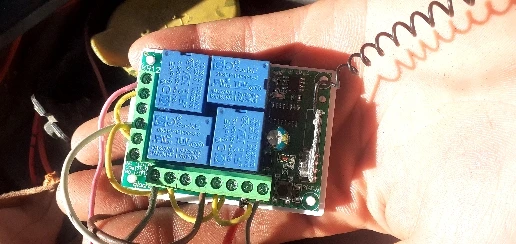

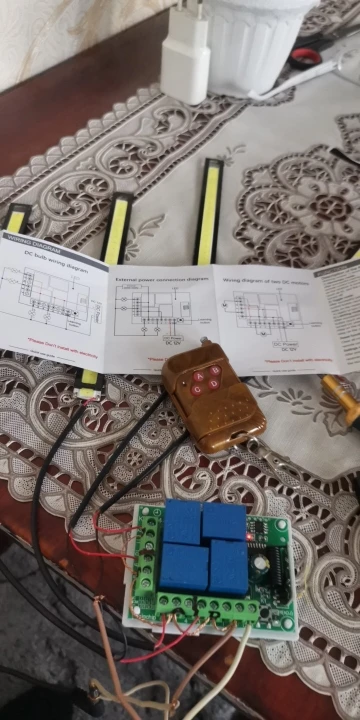

Photos of buyers

195 more
photos

Specifications

  • Brand Name: QIACHIP
  • Use: Electric Door
  • Use: Automated curtains
  • Use: Lighting
  • Use: Switch
  • Use: Universal
  • Origin: CN(Origin)
  • Wireless Communication: RF
  • Support APP: Yes
  • Channel: 4
  • Package: No
  • Frequency: 433 MHz
  • Model Number: KR1204-4 kit
  • Working Voltage: 12 V
  • Quiescent Current: 5mA
  • Receiving Sensitivity: >97dbm
  • Modulation Mode: ASK
  • Matching Mode: Intelligent Learning code
  • Working temperature: -30~+80℃
  • Shell: Yes
  • PCB dimension: 68*47*26(mm)
  • RF working mode: superheterodyne
  • Output Terminal: NO , NC , COM

433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter

Seller:
Alitools rating:
26%
/
Aliexpress rating:
96%
11.32 $
3401   orders
/
9   reviews
Rating: 4.8

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

E***e
February 8, 2021

nice. the product is very good but only for close distances. 10 to 20 meters. not more.

Anonymous
April 23, 2020

Thers is no respond from switch receiver. I can turn power on and setting SW would work but recieved no signal.

Anonymous
