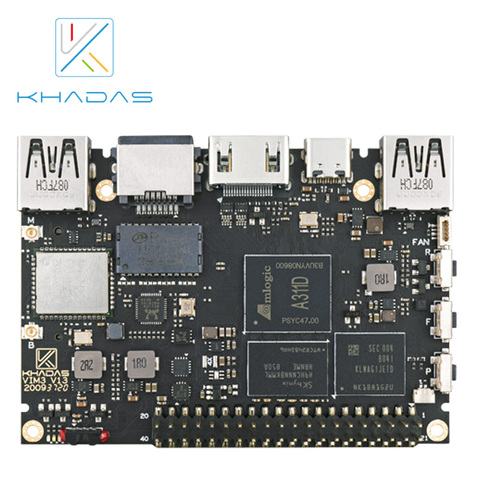

Khadas VIM3 SBC: 12nm Amlogic A311D Soc con 5,0 TOPS NPU | 4GB + 32GB (modelo Pro) ► Foto 1/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc con 5,0 TOPS NPU | 4GB + 32GB (modelo Pro) ► Foto 1/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc con 5,0 TOPS NPU | 4GB + 32GB (modelo Pro) ► Foto 2/5
Khadas VIM3 SBC: 12nm Amlogic A311D Soc con 5,0 TOPS NPU | 4GB + 32GB (modelo Pro) ► Foto 3/5

Fotos de compradores

47 más
fotos

Especificaciones

  • Nombre de la marca: Khadas
  • Tipo de placa de demostración: ARM
  • Origen: CN (origen)
  • Interfaz: 2 x USB2.0
  • Interfaz: Salida HDMI/RCA
  • Interfaz: Soporte de tarjeta TF
  • Interfaz: USB OTG
  • Capacidad ROM: 16 GB
  • Capacidad de memoria: 4 GB
  • Marca del procesador: AMLogic
  • Característica integrada: 10/100/1000 Mbps
  • Característica integrada: WiFi 802.11b/g/n
  • Característica integrada: Receptor IR
  • Característica integrada: bluetooth
  • SoC: Amlogic A311D
  • MCU: STM8S003 with Programmable EEPROM
  • SPI Flash: 16MB
  • LPDDR4/4X: 4GB
  • EMMC 5.1: 32GB
  • Wi-Fi: AP6398S Module 802.11
  • Bluetooth: Bluetooth 5.0
  • LAN: 10/100 / 1000M
  • WOL: Wake on Lan
  • TF Card: Molex Slot
  • USB HOST: x2 (900mA & 500mA Load)
  • USB Type-C: USB2.0 OTG & USB PD
  • VIN Connector: System Power Input
  • Wide Input Voltage: Range from 5V to 20V
  • Touch Panel: 10 Pin 0.5mm Pitch FPC Connector
  • Sensor: KXTJ3-1057 Tri-axis Digital Accelerometer
  • IR Receiver: 2 Channels
  • RTC & Battery Header: 0.8mm Pitch Header
  • Cooling Fan Header: 4-Pins 0.8mm Pitch Header
  • LEDs: Blue LED x1, White LED x1, Red LED x1
  • 40-Pins Header(2.54mm): CPU: USB, I2C, I2S, SPDIF, UART, PWM, ADC MCU: SWIM, NRST, PA1
  • Buttons: x3 (Power / Func / Reset)
  • XPWR Pads: For External Power Button
  • Mounting Holes: Size M2 x 4
  • Board Dimensions: 82.0 x 58.0 x 11.5 mm
  • Board Weight: 28.5g
  • Linux: Mainline Linux (Linux 5.0+)
  • Bootloader: Mainline U-Boot
  • Linux Distros: Ubuntu 18.04+ / Armbian
  • O/S for HTPC: LibreELEC
  • Android: Android Pie (9.0)
  • Khadas Only: Khadas TST/Khadas KBI/Fenix Script
  • Certifications: CE, RoHS

Khadas VIM3 SBC: 12nm Amlogic A311D Soc con 5,0 TOPS NPU | 4GB + 32GB (modelo Pro)

Vendedor:
Valoración de Alitools:
79%
/
Valoración de Aliexpress:
100%
105.00 139.00 $
18   pedidos
/
6   opiniones
Valoración: 5

Historial de precios

Notificación de bajada de precios

Nuestro bot de telegramas le notificará cuando el precio baje al deseable

Opiniones de los usuarios

Anónimo
18 de diciembre de 2020

Muy buen sistema de desarrollo, lo voy a probar, pero a priori tengo altas expectativas con la NPU y la GPU para aplicaciones de inteligencia artificial. Bien empacado y llegó rápido.
