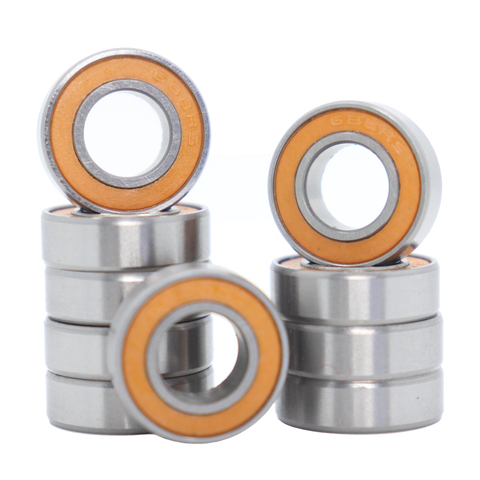

688-2RS rodamiento ABEC-3 10 piezas 8x16x5mm miniatura 688RS rodamientos de bolas 618/8RS Z3V3 naranja sellado 688 2RS ► Foto 1/6
688-2RS rodamiento ABEC-3 10 piezas 8x16x5mm miniatura 688RS rodamientos de bolas 618/8RS Z3V3 naranja sellado 688 2RS ► Foto 1/6
688-2RS rodamiento ABEC-3 10 piezas 8x16x5mm miniatura 688RS rodamientos de bolas 618/8RS Z3V3 naranja sellado 688 2RS ► Foto 2/6
688-2RS rodamiento ABEC-3 10 piezas 8x16x5mm miniatura 688RS rodamientos de bolas 618/8RS Z3V3 naranja sellado 688 2RS ► Foto 3/6

Fotos de compradores

50 más
fotos

Especificaciones

  • Nombre de la marca: FUSHI
  • Número de modelo: 688RS ABEC-3
  • Capacidad de Par: 8*16*5mm
  • Estructura: Ball
  • Recubrimientos: Chrome Steel/GCr15
  • Rugosidad superficial: Ra 0.05
  • Material: 52100 Chrome Steel
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Sealed
  • Part Number: 688 2RS
  • For Shaft Diameter: 8mm
  • Bore Dia (d): 8mm
  • Bore Dia Tolerance: -0.008mm to 0
  • For Housing ID: 16mm
  • Outer Dia (D): 16mm
  • Outer Dia Tolerance: -0.008mm to 0
  • Width (B): 5mm
  • Width Tolerance: -0.12mm to 0
  • Ring Material: 52100 Chrome steel
  • Ball Material: 52100 Chrome steel
  • Cage Material: 300 Series Stainless Steel
  • Shield Material: 300 Series Stainless Steel
  • Dynamic Load Rating (Cr) (Newtons): 964
  • Static Load Rating (Cor) (Newtons): 374
  • Max Speed (Grease) (X1000 RPM): 12
  • Max Speed (Oil) (X1000 RPM): 15
  • Lubrication: grease
  • Shaft Mount Type: Press Fit
  • Temperature Range: -20 to 120
  • ABEC Rating: ABEC-1
  • Radial Clearance Trade No.: C0
  • Radial Clearance: 0.002mm to 0.013mm
  • Ball Qty: 10
  • Ball Dia: 2.0000mm
  • Weight (grams): 3.69
