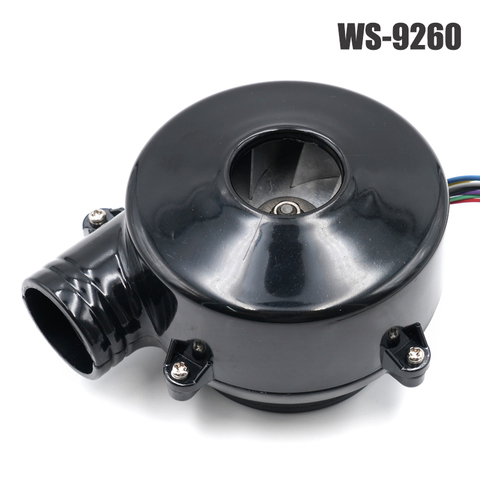

WS9260 24V 5.2kPa/6.2kpa High Pressure Centrifugal Fan,DC Brushless Centrifugal Blower,turbo fan, CPAP blower for ventilator ► Photo 1/6
WS9260 24V 5.2kPa/6.2kpa High Pressure Centrifugal Fan,DC Brushless Centrifugal Blower,turbo fan, CPAP blower for ventilator ► Photo 1/6
WS9260 24V 5.2kPa/6.2kpa High Pressure Centrifugal Fan,DC Brushless Centrifugal Blower,turbo fan, CPAP blower for ventilator ► Photo 2/6
WS9260 24V 5.2kPa/6.2kpa High Pressure Centrifugal Fan,DC Brushless Centrifugal Blower,turbo fan, CPAP blower for ventilator ► Photo 3/6

Specifications

  • Brand Name: OLOEY
  • Usage: Commercial Manufacture
  • Pressure: High Pressure
  • Model Number: WS9260-24
  • Type: Turbo Blower
  • Application: Air Blower
  • Speed (open): 23000/25000 RPM
  • Current (open): 6.5/8A
  • Air flow (open): 82/90 m3/h
  • Speed (sealed): 26500/28600 RPM
  • Current (sealed): 2.6/3.3 A
  • Air pressure (sealed): 5.2/6.2KPa
  • Motor Pole Paris: 2
  • Resistance--phase to phase: 0.62/0.9 Ohm
  • Motor type: Three phase brushless
  • Bearing type: NMB ball bearing
  • Dielectric strength: 500VDC for 1 min
  • Operating temperature range: Temp. -20 to +50 deg.C (No condensation)
  • Service life: 10000hrs(40 C degree rated operation point)
  • Hall effect sensor: 120
  • Application: Vacuum cleaner fresh air equipment seeding machine
  • Material: Aluminium alloy Plastic
  • Noise: 80dBA
  • Winding type: Delta

WS9260 24V 5.2kPa/6.2kpa High Pressure Centrifugal Fan,DC Brushless Centrifugal Blower,turbo fan, CPAP blower for ventilator
