Specifications
- Brand Name: Ashining
- Item Type: Wireless module
- Model Number: AS32-DTU30
- Module Size: 23 * 43mm
- Origin of Components: All components are imported from Japan, USA and Germany
- Production Craft: Lead-free, electrostatic bag packaging
- Interface Mode: 1 * 7 * 2.54mm
- Operating Frequency: 410 - 441MHz
- Supply Voltage: 2.5V - 5.5VDC
- Communication Level: Maximum 5.2V
- Measured Distance (3.0VDC): About 8,000m
- Transmission Power: Maximum 30dBm
- Air Rate: 6 levels adjustable
- Sleep Current: 1.5uA (MD1 =1, MD0 = 1)
- Transmitting Current: 520mA@1W, (Voltage 5V)
- Receiving Current: 18mA (Mode 0, mode 1)
- Transmitting Length: Internal ring fifo cache 256 bytes
- Receiving Length: Internal ring fifo cache 256 bytes
- Module Address: 65536 configurable addresses
- RSSI Support: Built-in intelligent processing
- Receiving Sensitivity: -130dbm at 2.4Kbps
- Antenna Type: SMA antenna/spring loaded antenna
- Operation Temperature: -40 ~ +85℃
- Operation Humidity: 10% - 90% relative humidity, no condensation
- Storage Temperature: -40 ~ +125℃

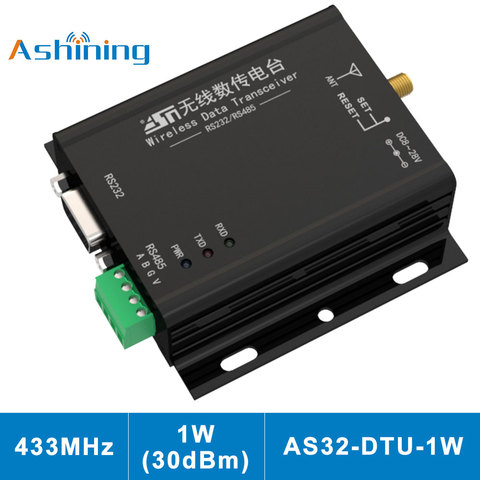

SX1278 433mhz LoRa 1W 8000m Ashining AS32-DTU-1W long range Wireless Transmitter and Receiver RF Module DTU
20.46
$
