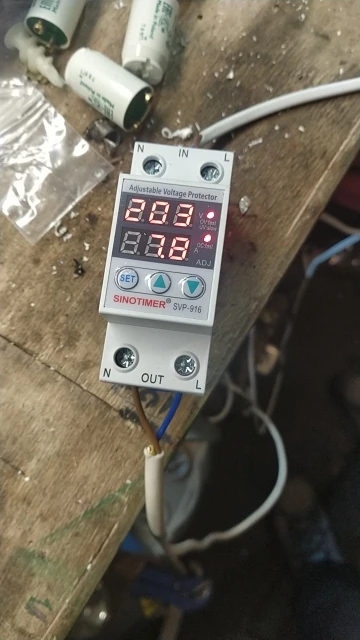

Photos of buyers
Specifications
- Origin: CN(Origin)
- Type: Mini
- is_customized: Yes
- Model Number: SVP-916-63A
- Brand: SINOTIMER
- Function: under/over-voltage limit current protection (display)
- Max Current: 63A
- Power Supply: 230VAC 50/60Hz
- Over-voltage protection value range: 221V-300V-OFF adjustable(default 280V)
- Over-voltage recovery value range: 220V-299V (default 250V)
- Over-voltage protection action time: 0.1-10s (default 0.1s)
- Under-voltage protection value range: 219V-150V-OFF Adjustable (default 160V)
- Under-voltage recovery value range: 155V-220V (default 180V)
- Under-voltage protection action time: 0.1-10s (default 0.1s)
- Over-current adjustment range: 1-63A (default 63A)
- Over-current action range: 0.1 -512 second (default 5.0s)
- Failure recovery delay time: 2-120s (default 60s)
- Delay time after power-on: 2-10s (default 2s)
- Certificates: CE RoHS EMC LVD
- Installation: DIN Rail
- Pole: 2 Poles
- Demension: 36*65*85mm
- Weight: 192g
- Electrical mechanical life: >4000 times
- Working temperature: -25~40C
- Working humidity: <90%
- Working altitude: <2000 m

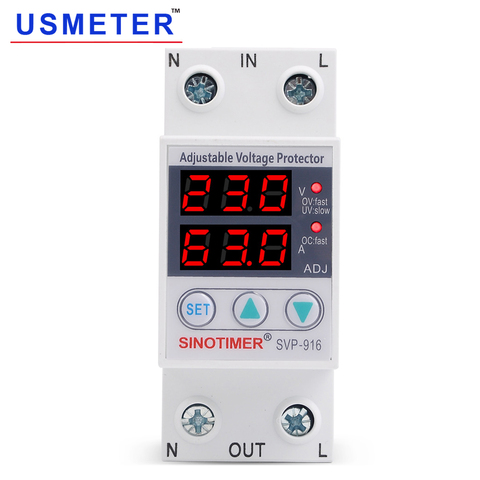

SVP-916 Over Under Voltage Relay 63A Adjustable Voltage Protector with Over Current Protection House Surge Protector Protective
