Specifications
- Rated Current: 0-5A
- Rated Voltage: 380V 50/60Hz
- Operating Voltage(Un): 380V
- Operating Frequency: 50/60Hz
- Operating Power: <12VA
- Operating temperature: -20℃ to 50℃
- Current Measuring Range: 0.5mA-5A
- Measuring Accuracy: %±1%
- Current Transformer Ratio: 5/5A-9999/5A
- Response Time: 0.4sec. - 250sec.
- discharge Time: 0.4sec. - 250sec
- Number of Steps: 12 Steps
- Connection Type: Plug-in terminal connection
- Contact: 3A/250VAC Resistive Load
- Weight: <850gr.
- Panel Hole Sizes: 140mm x 140mm
- Mounting: Front panel mounting
- Protection class: IP40
- Operating Altitude: <2000 meter

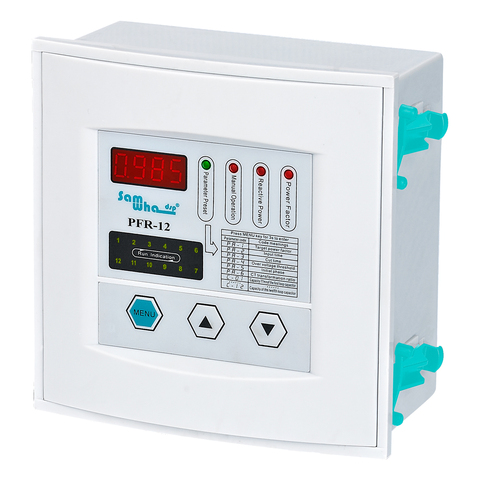

Samwha-Dsp PFR-12 Power Factor Controller, 12 Steps, 380VAC 50/60Hz
145.12
$
10
orders
/
3
reviews
