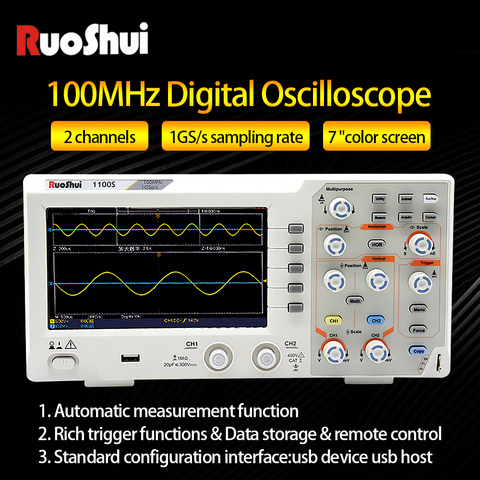

RuoShui Digital oscilloscope 100mhz 2channels 1gsa/s 7'' Tft Lcd High Accuracy Original USB Full bandwidth Storage Oscilloscope ► Photo 1/6
RuoShui Digital oscilloscope 100mhz 2channels 1gsa/s 7'' Tft Lcd High Accuracy Original USB Full bandwidth Storage Oscilloscope ► Photo 1/6
RuoShui Digital oscilloscope 100mhz 2channels 1gsa/s 7'' Tft Lcd High Accuracy Original USB Full bandwidth Storage Oscilloscope ► Photo 2/6
RuoShui Digital oscilloscope 100mhz 2channels 1gsa/s 7'' Tft Lcd High Accuracy Original USB Full bandwidth Storage Oscilloscope ► Photo 3/6

Specifications

  • Brand Name: RuoShui
  • DIY Supplies: ELECTRICAL
  • Display Size: 7 Inches & Above
  • IS Battery Demountable: No
  • Display resolution: 800*480 Pixels
  • Digital Channels: 2
  • Model Number: Digital oscilloscope 1100S
  • Max Waveform Capture Rate: 80,000 wfm/s
  • Real Time Sampling Rate: 1GSa/S
  • Record Length: 10K
  • Band Width: 100-349MHz
  • Bandwidth: 50 MHz Or 100 MHz
  • Sample Rate: 100 MS/s
  • Horizontal Scale (s/div): 5ns/div - 1000s/div, step by 1 - 2 - 5
  • Input Impedance: 1MΩ ± 2%, in parallel with 20pF±5pF
  • Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
  • Max Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)
  • DC Gain Accuracy: ±3%
  • DC Accuracy (average): Average≥16: ±(3% reading + 0.05 div) for triangle V
  • Probe Attenuation Factor: 1X, 10X, 100X, 1000X
  • LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)
  • Input Coupling: DC, AC , and GND
  • Trigger Type: Edge, Video
  • Trigger Mode: Auto, Normal, and Single
  • Trigger Level: ±5 divisions from screen center
  • Line / Field Frequency (video): NTSC, PAL and SECAM standard
  • Cursor Measurement: triangle V, and triangle T between cursors
  • Waveform Math: +, -, x, /, invert, FFT
  • Waveform Storage: 16 waveforms
  • Lissajous (Bandwidth): Full bandwidth
  • Communication Interface: USB host, USB device
  • Frequency Counter: available
  • Power Supply: 100V - 240V AC, 50/60Hz, CAT II
  • Power Consumption: <15W
  • Fuse: 2A
  • Temperature: Working temperature: 0 ℃ - 40 ℃
  • Dimension: 301 mm *152 mm*70 mm (L*H*W)
  • Product Name: Digital Storage Oscilloscope

RuoShui Digital oscilloscope 100mhz 2channels 1gsa/s 7'' Tft Lcd High Accuracy Original USB Full bandwidth Storage Oscilloscope

Seller:
Alitools rating:
81%
/
Aliexpress rating:
0%
181.28 190.83 $
Rating: 0

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one
