Specifications
- Brand Name: RuoShui
- DIY Supplies: ELECTRICAL
- Origin: CN(Origin)
- Model Number: VC 8145C
- AC Current: 0.2mA/2mA/20mA/200mA/2A/10A
- Is Smart Device: No
- AC Voltage: 200mV/2V/20V/200V/750V
- Measuring Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/60MΩ
- Certification: CE
- Certification: RoHS
- Operating Mode: Auto / Manual Range
- Measuring Inductance Range: -
- Display Type: Digital Display
- DC Current: 0.2mA/2mA/20mA/200mA/2A/10A
- DC Voltage: 200mV/2V/20V/200V/1000V
- Measuring Capacitance Range: 10nF/100nF/1000nF/10uF/100uF/1000uF
- Dimensions: 245 * 220 * 82(mm)
- Operating Temperature: 0 - 40 ℃
- Frequency: 10Hz - 10MHz
- Thermocouple: K indexing:-200.0°C - 1360.0°C
- Max Display: 22000
- Sample Rate: Quick: 20 times / sec;Slow: 3 times / sec
- True RMS: Yes
- Bandwidth: 1kHz
- The duty ratio: 10% - 90%
- Diode &Continuity: Yes
- MAX/MIN/AVG: Yes
- Relative value measurement: Yes
- Data Hold: Yes
- The reference junction compensation: Yes
- °C/ ° F conversion: Yes
- Input impedance: 10MΩ
- Online communication: USB
- SCPI: Yes
- Display: LCD with Backlight
- Safety: CAT II 300V
- Electromagnetic compatibility: IEC61326-1,Group1,Class B

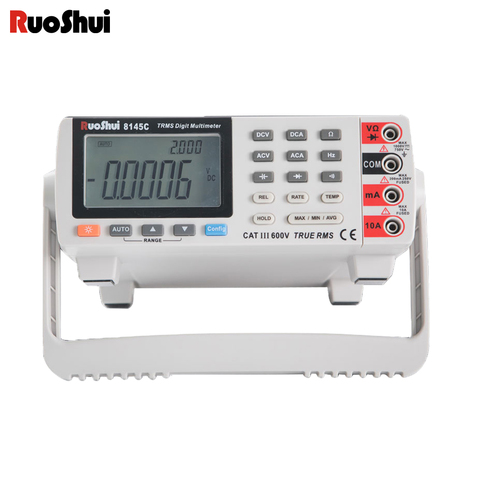

RuoShui 8145C Digital Multimeter Bench Top True RMS 1000V 10A Desktop Multimetro Tester 22000 Counts Volt Amp Ohm Capacitance Hz
127.35
$
5
orders
/
2
reviews
