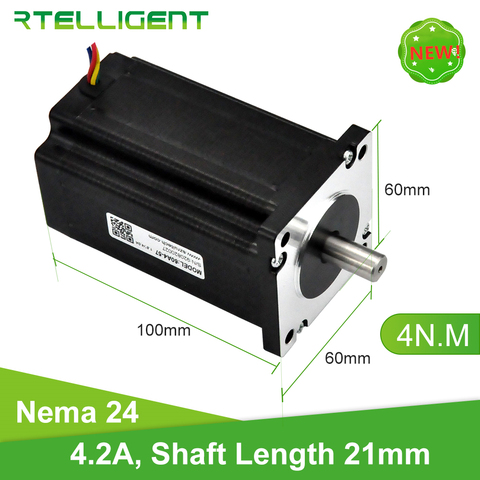

Rtelligent Nema 24 Stepper Motor Nema 23 Installation Size 4N.M 40kg.cm 60x102mm 4 Lead 4.2A Shaft Length 21mm Shaft Dia 10mm ► Photo 1/6
Rtelligent Nema 24 Stepper Motor Nema 23 Installation Size 4N.M 40kg.cm 60x102mm 4 Lead 4.2A Shaft Length 21mm Shaft Dia 10mm ► Photo 1/6
Rtelligent Nema 24 Stepper Motor Nema 23 Installation Size 4N.M 40kg.cm 60x102mm 4 Lead 4.2A Shaft Length 21mm Shaft Dia 10mm ► Photo 2/6
Rtelligent Nema 24 Stepper Motor Nema 23 Installation Size 4N.M 40kg.cm 60x102mm 4 Lead 4.2A Shaft Length 21mm Shaft Dia 10mm ► Photo 3/6

Specifications

  • Brand Name: Rtelligent
  • Origin: CN(Origin)
  • Certification: ce
  • Current / Phase: 4.2A
  • Step Angle(degrees): 1.8 degree
  • Phase: 2
  • Type: Hybrid
  • Model Number: 60A4-57
  • Holding Torque: 4.0N.M/ 40N.cm/ 40kgf.cm
  • RATED VOLTAGE: 3.8V
  • RESISTANCE: 0.9ohm
  • INDUCTANCE: 4.0mH
  • DIELECTRIC STRENTH: 500V A.C /MINUTE
  • INSULATION RESISTANCE: Above 100MΩ / MIN.
  • INSULATION CLASS: CLASS B
  • TEMPERATURE RISE: 80K MAX
  • OPERATION AMBIENT TEMP: -20℃ ~ +50℃
  • OPERATION AMBIENT HUM: 15%~90%

Rtelligent Nema 24 Stepper Motor Nema 23 Installation Size 4N.M 40kg.cm 60x102mm 4 Lead 4.2A Shaft Length 21mm Shaft Dia 10mm
