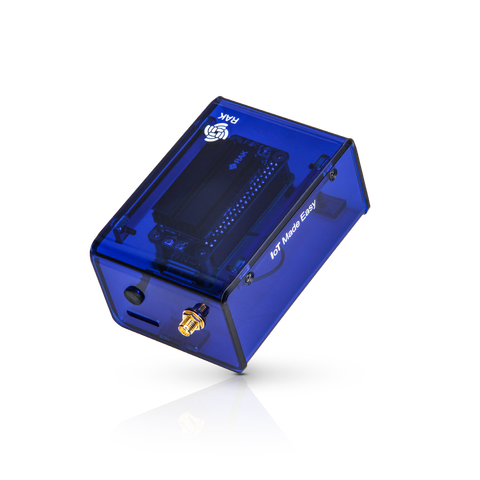

RAK7246 / RAK7246G LoRaWAN Developer Gateway | RAK2246 + Raspberry Pi Zero W | Semtech SX1308 | 8 LoRa Channels Ublox MAX-7Q GPS ► Photo 1/6
RAK7246 / RAK7246G LoRaWAN Developer Gateway | RAK2246 + Raspberry Pi Zero W | Semtech SX1308 | 8 LoRa Channels Ublox MAX-7Q GPS ► Photo 1/6
RAK7246 / RAK7246G LoRaWAN Developer Gateway | RAK2246 + Raspberry Pi Zero W | Semtech SX1308 | 8 LoRa Channels Ublox MAX-7Q GPS ► Photo 2/6
RAK7246 / RAK7246G LoRaWAN Developer Gateway | RAK2246 + Raspberry Pi Zero W | Semtech SX1308 | 8 LoRa Channels Ublox MAX-7Q GPS ► Photo 3/6

Photos of buyers

Specifications

  • Brand Name: RAK
  • Origin: CN(Origin)
  • Type: Connectors
  • Model Number: RAK7246G / RAK7246
  • LoRa Module: RAK2246 / Semtech SX1308 chip
  • GPS Module: Ublox MAX-7Q GPS module
  • Heat Sink: Pre-installed Metal Radiator Material
  • Frequency: RU864, IN865, EU868, US915, AU915, KR920, AS923
  • LoRaWAN Version: LoRaWAN V1.0.2
  • Interfaces: SPI, UART, I2C, GPIOs
  • Antenna Interface 1: SMA connector for LoRa
  • Antenna Interface 2 (for RAK7246G only): SMA connector for GPS
  • Transmission Power: 20dbm
  • Receiver Sensitivity: -139dbm @ SF12 at 125kHz
  • Working Environment: Indoor
  • Dimension (L x W x H): 96mm x 66mm x 47mm
  • Enclosure Material: Acrylic
  • Ingress Protection Rating: IP30

RAK7246 / RAK7246G LoRaWAN Developer Gateway | RAK2246 + Raspberry Pi Zero W | Semtech SX1308 | 8 LoRa Channels Ublox MAX-7Q GPS

Seller:
Alitools rating:
80%
/
Aliexpress rating:
100%
99.00 114.00 $
15   orders
/
10   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

Anonymous
December 2, 2020

Product works and with no issues.

Anonymous
November 4, 2020

Works great with TTN. With external DIY 1/4 wave antenna it reaches range up to 8km in my tests. If use external antenna it is important to use RPSMA connector or change internal pigtail to IPX - SMA and use standard SMA connector. With standard shipping method it arrived to Poland with tax and VAT.

Anonymous
