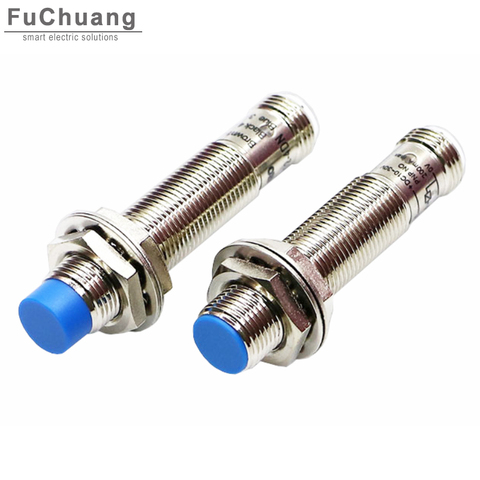

Plug-in Proximity Sensor LM12 Sn:2/4mm 6-36VDC NPN PNP NO NC NO+NC inductive proximity switch with air plug ► Photo 1/5
Plug-in Proximity Sensor LM12 Sn:2/4mm 6-36VDC NPN PNP NO NC NO+NC inductive proximity switch with air plug ► Photo 1/5
Plug-in Proximity Sensor LM12 Sn:2/4mm 6-36VDC NPN PNP NO NC NO+NC inductive proximity switch with air plug ► Photo 2/5
Plug-in Proximity Sensor LM12 Sn:2/4mm 6-36VDC NPN PNP NO NC NO+NC inductive proximity switch with air plug ► Photo 3/5

Photos of buyers

Specifications

  • Origin: CN(Origin)
  • Certification: ce
  • Current: 200mA
  • Features: Inductive type proximity sensor
  • Material: Stainless Steel
  • Item Type: Switches
  • Is Smart Device: NO
  • Model Number: LM12 / LJ12
  • Switch Type: Proximity Switch
  • Output voltage dropDC/AC: DC<2V DC(Two wire system) <3.9V AC<10V
  • Consumption current: DC<15mA AC<10mA
  • Standard detected object: 12*12*1(A3 iron)
  • Repeated precision: 0.01
  • DC/AC Response frequency: 400Hz / 25Hz
  • Working environment temperature: -25℃ to 75℃
  • Insulation resistance: ≥50MΩ
  • Shell material: Metal
  • Protection grade: IEC standard IP67

Plug-in Proximity Sensor LM12 Sn:2/4mm 6-36VDC NPN PNP NO NC NO+NC inductive proximity switch with air plug
