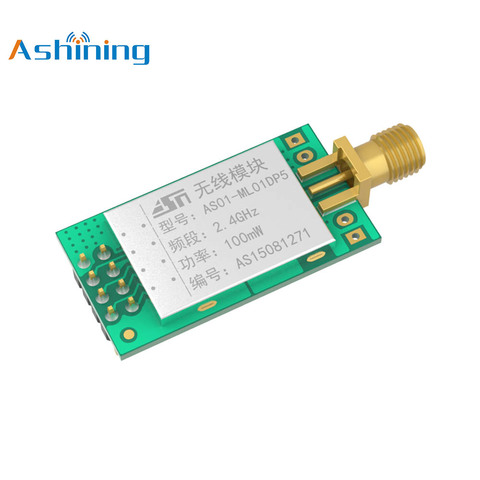

PA LNA 2.4GHz 2km AS01-ML01DP5 iot SPI nRF24L01P rf transceiver module Transmitter Receiver Wireless rf Module ► Photo 1/6
PA LNA 2.4GHz 2km AS01-ML01DP5 iot SPI nRF24L01P rf transceiver module Transmitter Receiver Wireless rf Module ► Photo 1/6
PA LNA 2.4GHz 2km AS01-ML01DP5 iot SPI nRF24L01P rf transceiver module Transmitter Receiver Wireless rf Module ► Photo 2/6
PA LNA 2.4GHz 2km AS01-ML01DP5 iot SPI nRF24L01P rf transceiver module Transmitter Receiver Wireless rf Module ► Photo 3/6

Specifications

  • Brand Name: Ashining
  • Item Type: Wireless module
  • Model Number: AS01-ML01DP5
  • Chipset: nRF24L01P
  • Module size: 18 * 33.3mm
  • Module weight: 4.9g
  • Operate frequency: 2.4GHz ~ 2.525GHz
  • Production craft: Lead-free, pasted by machine
  • Interface mode: SPI
  • Supply voltage: 1.8~3.6VDC
  • Communication level: 0.7VCC~5V
  • Measured distance: 2,000m
  • Sending power: Maximum 20dBm
  • Air rate: 250k~2Mbps
  • Turn off current: 1.0uA
  • Sending current: 150mA@20dBm
  • Receiving current: 23mA
  • Communication Interface: SPI
  • Transmitting length: Each data packet 1-32 byte
  • Receiving length: Each data packet 1-32 byte
  • RSSI support: Not support
  • Antenna interface: SMA-KE
  • Operation temperature: -40~+85℃
  • Operation humidity: 10%-90%
  • Storage temperature: -40~+125℃
  • Receiving sensitivity: -102dBm@250kbps

PA LNA 2.4GHz 2km AS01-ML01DP5 iot SPI nRF24L01P rf transceiver module Transmitter Receiver Wireless rf Module

Seller:
Alitools rating:
14%
/
Aliexpress rating:
100%
10.42 $
2   orders
/
1   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

H***e
December 25, 2020

Thank you. It is like a Christmas present for me. The delivery is quick, quality is good and the kit come with the antena and UART to SPI modules. Seller recommended
