Specifications
- Brand Name: MINEW
- Item Type: BLE module

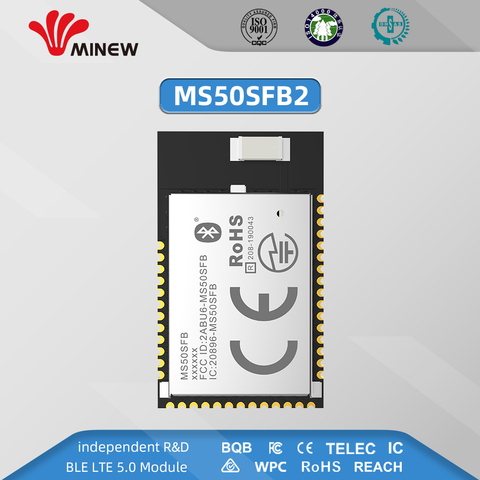

- Model Number: MS50SFB2
- Chipset: nRF52832/52810
- Antenna: Ceramic Chip
- Qualification: BQB
- Certification: FCC CE TELEC IC RCM RoHS Reach
- Dimension: 20*12*1.6mm
- Frequency: 2402 to 2480 MHz
- Max. Output power: +4dBm
- Single power supply: 1.8 to 3.9V
- GPIO: 32
- Flash memory: 512kb
- RAM: 64kb
nRF52832 2.4GHz Transceiver Wireless rf Module Minew MS50SFB 2.4 ghz Ble 5.0 Receiver transmitter Bluetooth Module
173.53
$
2
orders
/
3
reviews
Price history
- for 3 month
- for half a year
- Requires Alitools extension
The Alitools extension is required to keep track of an item and receive notifications when prices drop.
Price drop notification
164.85 $ (-5%)
164.85 $ (-5%)
156.18 $ (-10%)
147.50 $ (-15%)
138.82 $ (-20%)
Out telegram bot will notify you once the price drops to the desirable one
This item is from other sellers
Similar Products
Customer Reviews
V***n
August 15, 2020
Very cute little module! It is not clear from documentation, if the module already has an internal 1uF capacitor at the DEC4 pin. (Datasheet V2.0 says: "the module is highly integrated that contains ALL the necessary components", but a reference schematic in the same document illustrates the capacitor externally. Perhaps the manufacturer could clarify this.) So, I installed the capacitor externally (to be on the safe side - according to Nordic even 2.2uF is acceptable), and the module worked perfectly from the first try.
V***k
December 12, 2019
Great seller with great product. Fast shipping. Well packaged. I recommend this seller.
Anonymous
