Photos of buyers
Specifications
- Brand Name: HaiHuiLai
- DIY Supplies: Electrical
- Model Number: NPT3/4-01
- Flow rate: 2~45 LPM
- Product name: water Brass Hall turbine flow sensor
- Material: Brass& Plastic
- Size: Male NPT 3/4 inch
- Flow pulse: F(Hz)=(8.1Q) -3 +/- 10% Q: L/min
- Wire Length: 350+/- 10 mm
- Pulse: 1L water =477 pulse
- Voltage: DC4.5~18V
NPT 3/4" DN20 water copper Brass Hall flow sensor turbine meter
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews
Not arrived until today 02 June 2019 Lost in space?

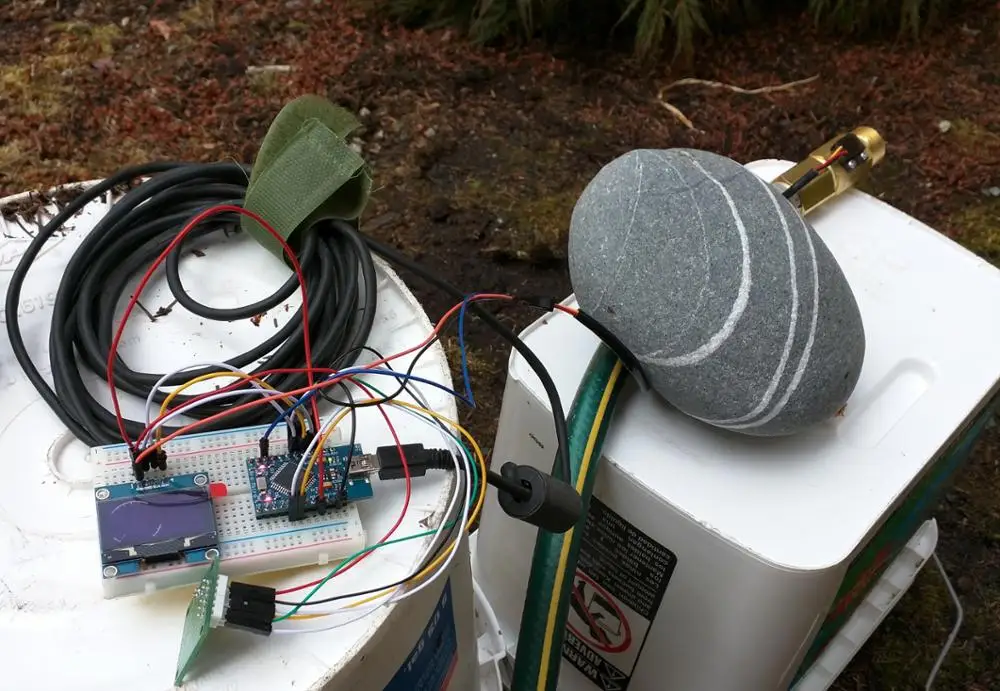

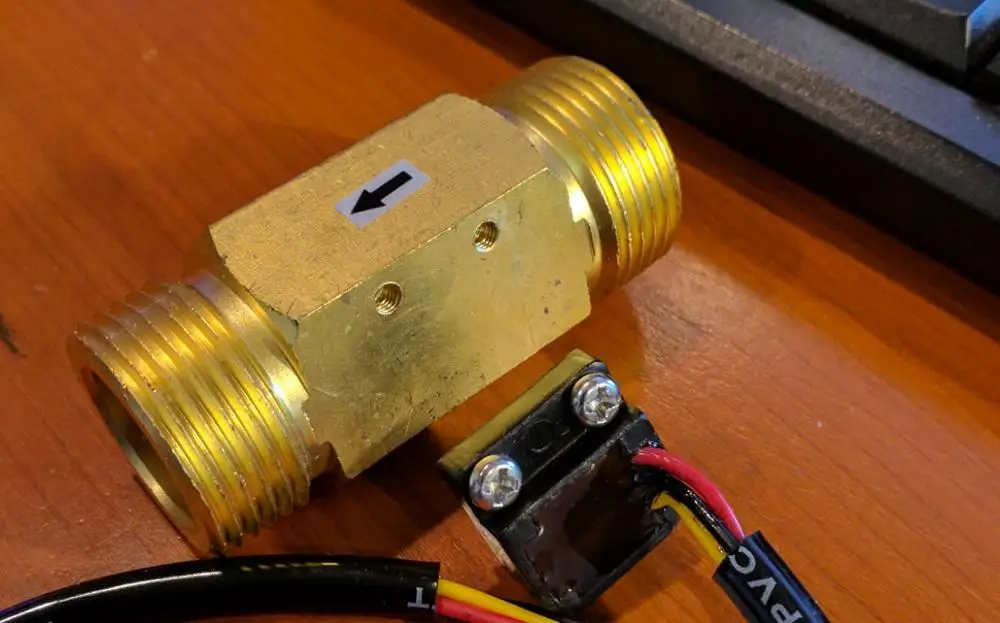

Sensors work as described. Mine have 3/4 NPT threads for North America, and the threads seem fine quality: no leaks when used with a bit of teflon tape. A test of the minimum detectable flow rate indicates that the sensors work slightly better than the spec of 2L/min, so that is good too. The item description did not indicate the wiring color code, so here it is: black=GND, red=5V, yellow=pulse output. The pulses are 5V logic levels, and in fact, they are not really pulses, but a periodic toggling of the output as the water flows. More water == faster toggling. Works fine with 5V Arduino. Also: Before I bought this sensor, I was wondering about the possibility of leakage due to the attachment of the sensor package. After receiving it, I removed the sensing hardware in one of the photos. You can see that there is absolutely no possibility for leakage due to the Hall sensor: it senses magnetically right through the brass body of the flow sensor.
