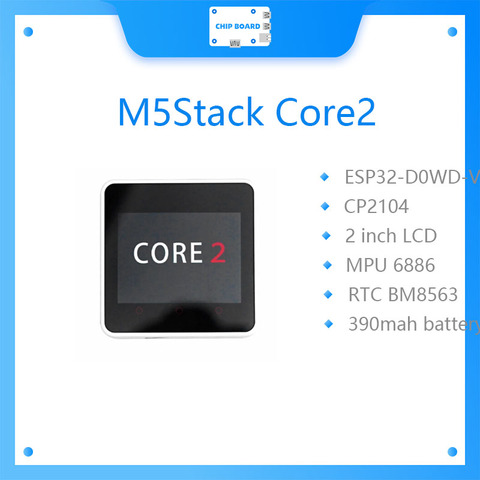

New Arrival~M5Stack Official Core2 ESP32 IoT Development Kit D0WDQ6-V3 Controller + 2.0 Inch LCD TFT With Touch Screen ► Photo 1/6
New Arrival~M5Stack Official Core2 ESP32 IoT Development Kit D0WDQ6-V3 Controller + 2.0 Inch LCD TFT With Touch Screen ► Photo 1/6
New Arrival~M5Stack Official Core2 ESP32 IoT Development Kit D0WDQ6-V3 Controller + 2.0 Inch LCD TFT With Touch Screen ► Photo 2/6
New Arrival~M5Stack Official Core2 ESP32 IoT Development Kit D0WDQ6-V3 Controller + 2.0 Inch LCD TFT With Touch Screen ► Photo 3/6

Specifications

  • Brand Name: Waveshare
  • Demo Board Type: ARM
  • Certification: none
  • Origin: CN(Origin)
  • Model Number: K010
  • ESP32-D0WD-V3: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
  • Flash: 16MB
  • PSRAM: 8MB
  • Input Voltage: 5V @ 500mA
  • Interface: TypeC x 1, GROVE(I2C+I/0+UART) x 1
  • IPS LCD Screen: 2.0"@320*240 ILI9342C
  • Touch Screen: FT6336U
  • Speaker: 1W-0928
  • LED: Green power indicator light
  • Vibration reminder: Vibration motor
  • MIC: SPM1423
  • I2S Power Amplifier: NS4168
  • 6-axis IMU: MPU6886
  • RTC: BM8563
  • PMU: AXP192
  • USB Chip: CP2104
  • DC-DC Boost: SY7088
  • TF card slot: 16G Max.
  • Lithium Battery: 390mAh @ 3.7V
  • Antenna: 2.4G 3D antenna
  • Operating temperature: 32°F to 104°F ( 0°C to 40°C )
