Specifications
- Brand Name: sumtor
- Origin: CN(Origin)
- Certification: ce
- Certification: ISO
- Certification: ROHS
- Current / Phase: 3A
- Step Angle(degrees): 1.8
- Phase: 2
- Type: Hybrid
- Model Number: Stepper Motor RV30-57HS5630A4JD11
- Holding Torque: 2.6-24N.m
- structure: worm gear stepper motor
- Motor Length: 56mm
- Insulation Resistance: 100MΩ Min.500VDC
- Application: CNC Industrial Machinery, Printer
- motor size: NEMA 23 stepper, 57mm frame
- speed ratio: 5:1,7.5:1, 10:1, 15:1, 20:1, 25:1,30 :1, 40:1, 50:1, 60 :1 80:1
- Worm reducer model: RV30 worm gearbox speed reducer
- Backlash: 1-2 degree
- Resistance Accuracy: ±10%
- Step Angle Accuracy: ±5%

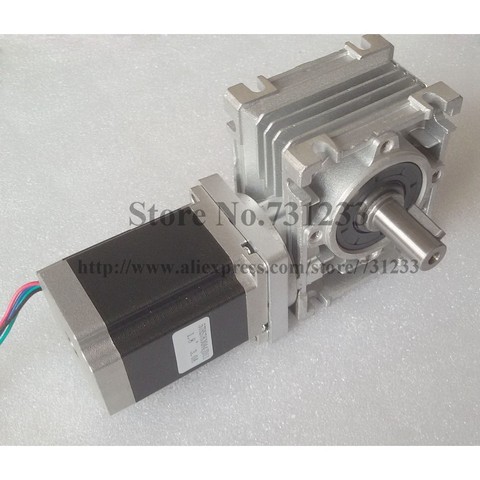

NEMA 23 Worm Gearbox Stepper Motor 5:1-80:1 CE ROHS Motor Length 56mm 153oz-in Nema23 Worm Reducer Gear Stepper Motor
41.40
–
45.00
$
