Specifications
- Origin: CN(Origin)
- Certification: ce
- Certification: ISO
- Certification: ROHS
- Current / Phase: 3A
- Step Angle(degrees): 1.8 Degree
- Phase: 2
- Type: Hybrid
- Model Number: 57HS10030A4D8
- Holding Torque: 2.5 N.m
- Holding Torque: 25 Kg.cm, 25Kg.cm
- Type: Hybrid
- Phase Inductance: 4.5mH
- Rotor Intertia: 680g.cm2
- No of leads: 4
- Rated voltage: 3V
- Phase Resisitance: 1.0Ω
- Detent Torque: 1000 g.cm Max
- Motor Length: 100 mm
- Size: 57x57x100mm
- reducer ratio: 4:1/6:1/10:1

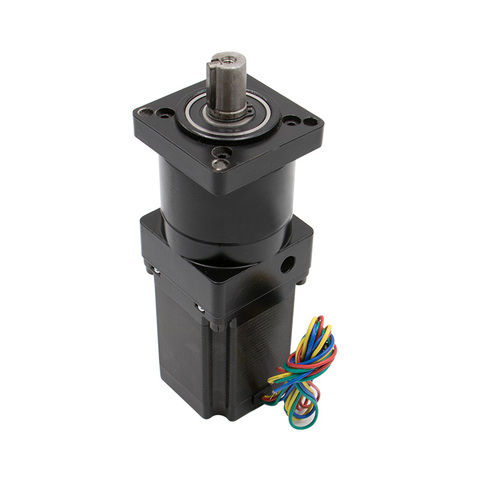

NEMA 23 stepper motor 2.5NM with Planetary gearbox 4:1/6:1/10:1 reducer ratio Motor length 100mm 3A 4wire CNC router machine
