Specifications
- Brand Name: STEPPERONLINE
- Origin: CN(Origin)
- Certification: ce
- Certification: ISO
- Certification: ROHS
- Current / Phase: 1.5A
- Step Angle(degrees): 1.8 deg
- Phase: 2
- Type: Hybrid
- Model Number: 17HS15-1504S-X1
- Holding Torque: 45Ncm (63.74oz.in)
- Size: 42 x 42x 39mm
- Shaft shape: D-cut
- Shaft Diameter: 5mm
- Phase Resistance: 2.3ohms
- Inductance: 4.4mH ± 20%(1KHz)
- Number of Lead: 4
- Cable: 1m 4 wires w/ connector
- Application: 3D printers,CNC and robotics applications
- Warranty: 1 Year
- Rotor Inertia: 54g-cm2

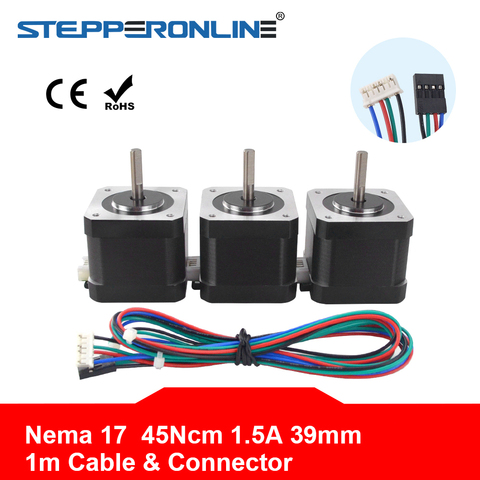

Nema 17 Stepper Motor 39mm 42BYGH 1.5A(17HS4401S) Motor 45Ncm Nema17 Stepping Motor 4-lead w/1m Cable & Connector for 3D Printer
11.65
–
62.91
$
14
orders
/
3
reviews
Price history
- for 3 month
- for half a year
- Requires Alitools extension
The Alitools extension is required to keep track of an item and receive notifications when prices drop.
Price drop notification
11.07 $ (-5%)
11.07 $ (-5%)
10.49 $ (-10%)
9.90 $ (-15%)
9.32 $ (-20%)
Out telegram bot will notify you once the price drops to the desirable one
This item is from other sellers
Similar Products
Customer Reviews
U***r
November 7, 2020
S&H was ultra fast. Items were very well protected. Items correspond to the description and are well made. No cosmetic issues. Conducted functional tests on two items. They can get very hot; however, operating them at 24V and reducing the current on the driver to a minimum reduced temperature while maintaining operational functionality.
Anonymous
October 17, 2020
tech spec sheet included, wire X3 included. tested, all working well, good quality, well packed, fast shipping. will sure buy again, recommending this seller.
