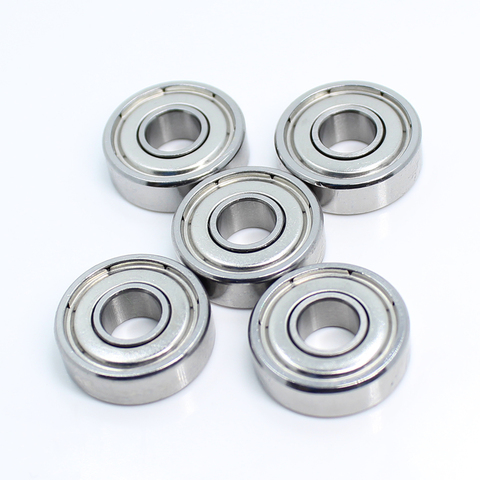

MR616ZZ Ball Bearing 6*16*5 mm 5PCS ABEC-3 Non Standard B6-63Z R-1660HH Deep Groove Bearings MR616 Z B6-63 ► Photo 1/6
MR616ZZ Ball Bearing 6*16*5 mm 5PCS ABEC-3 Non Standard B6-63Z R-1660HH Deep Groove Bearings MR616 Z B6-63 ► Photo 1/6
MR616ZZ Ball Bearing 6*16*5 mm 5PCS ABEC-3 Non Standard B6-63Z R-1660HH Deep Groove Bearings MR616 Z B6-63 ► Photo 2/6
MR616ZZ Ball Bearing 6*16*5 mm 5PCS ABEC-3 Non Standard B6-63Z R-1660HH Deep Groove Bearings MR616 Z B6-63 ► Photo 3/6

Photos of buyers

Specifications

  • Brand Name: FUSHI
  • Model Number: MR616Z
  • Material: Bearing Steel
  • is_customized: Yes
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Shielded
  • Part Number: MR616zz
  • For Shaft Diameter: 6mm
  • Bore Dia (d): 6 mm
  • Bore Dia Tolerance: -0.008mm to 0
  • For Housing ID: 16mm
  • Outer Dia (D): 16 mm
  • Outer Dia Tolerance: -0.008mm to 0
  • Width (B): 5mm
  • Width Tolerance: -0.12mm to 0
  • Ring Material: 52100 Chrome steel
  • Ball Material: 52100 Chrome steel
  • Cage Material: 300 Series Stainless Steel
  • Shield Material: 300 Series Stainless Steel
  • Dynamic Load Rating (Cr) (Newtons): 1120
  • Static Load Rating (Cor) (Newtons): 395
  • Max Speed (Grease) (X1000 RPM): 22
  • Max Speed (Oil) (X1000 RPM): 28
  • Lubrication: Grease
  • Shaft Mount Type: Press Fit
  • Temperature Range: -20 to 120
  • ABEC Rating: ABEC-3
  • Radial Clearance Trade No.: C0
  • Radial Clearance: 0.002mm to 0.013mm
  • Weight (grams): 4.39
  • ISO Standard: 492

MR616ZZ Ball Bearing 6*16*5 mm 5PCS ABEC-3 Non Standard B6-63Z R-1660HH Deep Groove Bearings MR616 Z B6-63
