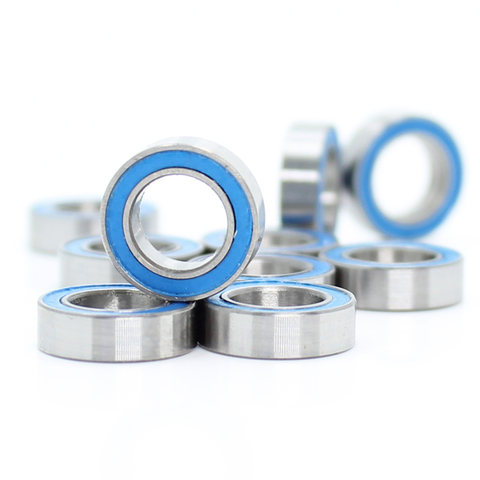

MR106RS Bearing ABEC-3 (10PCS) 6*10*3 mm Miniature MR106-2RS Ball Bearings RS MR106 2RS With Blue Sealed L-1060DD ► Photo 1/6
MR106RS Bearing ABEC-3 (10PCS) 6*10*3 mm Miniature MR106-2RS Ball Bearings RS MR106 2RS With Blue Sealed L-1060DD ► Photo 1/6
MR106RS Bearing ABEC-3 (10PCS) 6*10*3 mm Miniature MR106-2RS Ball Bearings RS MR106 2RS With Blue Sealed L-1060DD ► Photo 2/6
MR106RS Bearing ABEC-3 (10PCS) 6*10*3 mm Miniature MR106-2RS Ball Bearings RS MR106 2RS With Blue Sealed L-1060DD ► Photo 3/6

Photos of buyers

Specifications

  • Brand Name: FUSHI
  • Origin: CN(Origin)
  • Certification: RoHS
  • Model Number: MR106-2RS
  • Torque Capacity: 6x10x3 MM
  • Structure: Deep Groove Ball
  • Coatings: 52100 Chrome Steel
  • Surface Roughness: Ra 0.05
  • Material: STEEL
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Sealed
  • Part Number: MR106 2RS
  • For Shaft Diameter: 6mm
  • Bore Dia (d): 6mm
  • Bore Dia Tolerance: -0.008mm to 0
  • For Housing ID: 10mm
  • Outer Dia (D): 10mm
  • Outer Dia Tolerance: -0.008mm to 0
  • Width (B): 3mm
  • Width Tolerance: -0.12mm to 0
  • Ring Material: 52100 Chrome steel
  • Ball Material: 52100 Chrome steel
  • Cage Material: 300 Series Stainless Steel
  • Shield Material: 300 Series Stainless Steel
  • Dynamic Load Rating (Cr) (Newtons): 322
  • Static Load Rating (Cor) (Newtons): 74
  • Max Speed (Grease) (X1000 RPM): 15
  • Max Speed (Oil) (X1000 RPM): 17
  • Lubrication: Grease
  • Shaft Mount Type: Press Fit
  • Temperature Range: -20 to 120
  • ABEC Rating: ABEC-3
  • Radial Clearance Trade No.: C0
  • Radial Clearance: 0.002mm to 0.013mm
  • Ball Qty: 10
  • Ball Dia: 1.2000mm
  • Weight (grams): 0.76

MR106RS Bearing ABEC-3 (10PCS) 6*10*3 mm Miniature MR106-2RS Ball Bearings RS MR106 2RS With Blue Sealed L-1060DD
