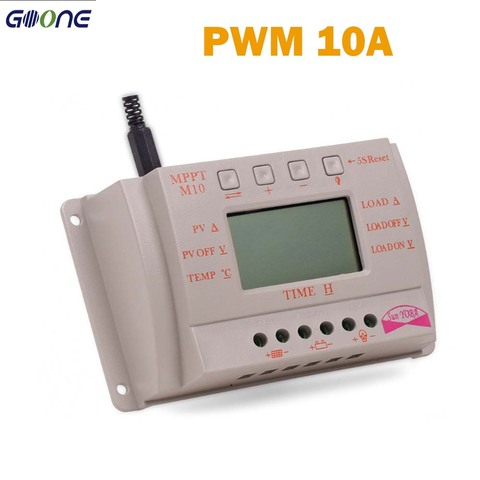

MPPT 10A 20A M10 M20 Solar Charge Controller 12V 24V Auto 5V USB Solar Panel Battery LCD Charger Regulator MPPT PV System ► Photo 1/6
MPPT 10A 20A M10 M20 Solar Charge Controller 12V 24V Auto 5V USB Solar Panel Battery LCD Charger Regulator MPPT PV System ► Photo 1/6
MPPT 10A 20A M10 M20 Solar Charge Controller 12V 24V Auto 5V USB Solar Panel Battery LCD Charger Regulator MPPT PV System ► Photo 2/6
MPPT 10A 20A M10 M20 Solar Charge Controller 12V 24V Auto 5V USB Solar Panel Battery LCD Charger Regulator MPPT PV System ► Photo 3/6

Specifications

  • Model Number: M10 M20
  • Application: Charger Controller
  • Application: Voltage Controller
  • Application: Lighting Controller
  • Application: Solar System Controller
  • Maximum Current: 12A 20A
  • Voltage:: 12v 24v Auto
  • Application:: off grid solar system
  • MAX.PV input power:: 130W(12V) 260W(24V);260W(12V)520W(24V)
  • Battery float voltage:: 13.8V(12V )/27.6V(24V)
  • Battery protection:: 10.6V(12V); 21.2V(24V)
  • Battery capacity configuration:: 12.6V(12V); 25.2(24V)
  • System olad loss:: ≤13mA
  • Loop Buck:: ≤100mV
  • Humidity requirements:: ≤90% , No condensation
  • Temperature compensation:: -4mV/Cell/℃
  • Max, open pv voltage:: 18V-24V(12V); 36-48V(24V)
  • Battery capacity configuration:: ≥ 100AH(10A); ≥ 200AH(20A)
  • Installation Lin(mm2):: 4mm2(10A) ;8mm2(20A)
  • Installation Line(AWG):: 10#(AWG)(10A); 8#(AWG)(20A)

MPPT 10A 20A M10 M20 Solar Charge Controller 12V 24V Auto 5V USB Solar Panel Battery LCD Charger Regulator MPPT PV System
