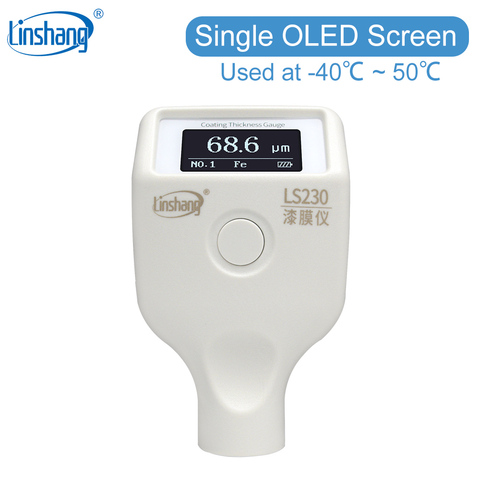

Linshang LS230 OLED car paint meter LS232 coating thickness gauge measure automotive paint thickness low temperature resistant ► Photo 1/6
Linshang LS230 OLED car paint meter LS232 coating thickness gauge measure automotive paint thickness low temperature resistant ► Photo 1/6
Linshang LS230 OLED car paint meter LS232 coating thickness gauge measure automotive paint thickness low temperature resistant ► Photo 2/6
Linshang LS230 OLED car paint meter LS232 coating thickness gauge measure automotive paint thickness low temperature resistant ► Photo 3/6

Photos of buyers

Specifications

  • Brand Name: Linshang
  • Certification: NONE
  • Origin: CN(Origin)
  • With Backlight Or Not: No
  • Model Number: LS230/LS232
  • Probe tip: Ruby fixed
  • Measuring principle: Fe: Hall Effect / NFe: Eddy current
  • Probe type: Built-in integrated probe
  • Measuring range: 0.0-2000um
  • Resolution: 0.1um(0um-99.9um); 1um:(100um-999um);0.01mm:(1.00mm-2.00mm)
  • Accuracy: ≤±(3% reading+2um)
  • Unit: um / mil
  • Measuring interval: 0.5s
  • Minimum measuring area: Diameter 25mm
  • Minimum curvature: Convex:5mm / Concave:25mm
  • Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm
  • Display: 128*48 dot matrix low temperature resistant OLED
  • Power supply: 2pcs of 1.5V AAA alkaline battery
  • Operation temperature: -40 - 50 degree celsius
  • Storage temperature: -50 -60 degree celsius
  • Host size: 101*62*28 mm
  • Weight(include battery): about 80g

Linshang LS230 OLED car paint meter LS232 coating thickness gauge measure automotive paint thickness low temperature resistant
