Specifications
- Brand Name: LINKREAL
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Package: Yes
- Model Number: LRNV9611
- Type: Add On Cards
- Interface Type: PCI Express
- Host Bus Type: PCI Express x4
- Connector: 1*4Mini-SAS(SFF-8643)
- Feature 1: Fully RoHS Compliant
- Feature 2: No drivers required

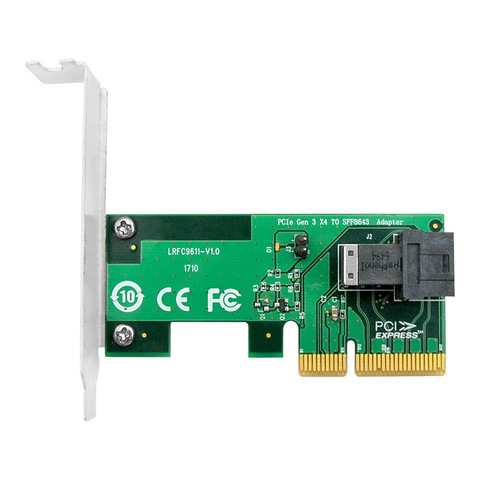

Linkreal Four-Lane NVMe PCIe 3.0 x4 to SFF-8643 Adapter connecting to U.2 SFF-8639 Interface SSD
Price history
- for 3 month
- for half a year
- Requires Alitools extension
Price drop notification
This item is from other sellers
Similar Products
Customer Reviews
This adapter will not work with U.2 drive due to on-board PCIe PERST# buffer is being reversed (check the schematics I traced from this board). Because of that, reset from U.2 drive is being driven *to* the motherboard, which will prevent it from correct start-up and showing BIOS. After swapping R5 and R6 (that essentially omitted the reset buffer circuit) my issue was solved. Seller was quite nice and offered me to send another board (with R4) installed, but I don't think it will solve this issue.
This adapter will not work with U.2 drive due to on-board PCIe PERST# buffer is being reversed (check the schematics I traced from this board). Because of that, reset from U.2 drive is being driven *to* the motherboard, which will prevent it from correct start-up and showing BIOS. After swapping R5 and R6 (that essentially omitted the reset buffer circuit) my issue was solved. Seller was quite nice and offered me to send another board (with R4) installed, but I don't think it will solve this issue.
