Specifications
- Brand Name: HLTNC
- Origin: CN(Origin)
- Certification: CE
- Structure: Jaw / Spider
- Material: Steel
- Model Number: XLO D30 L50
- Standard or Nonstandard: Standard
- Flexible or Rigid: Rigid
- Rated torque: 20Nm
- max speed: 19000RPM
- weight: 0.1kg
- out diameter: 30mm
- length: 50mm
- inner hole 1: 10 (Keyway 3mm)-10 (Keyway 3mm)
- inner hole 2: 10 (Keyway 3mm) -12 (Keyway 4mm)
- inner hole 3: 10(Keyway 3mm) -14 (Keyway 5mm)
- inner hole 4: 10(Keyway 3mm)-15(Keyway 5mm)
- inner hole 5: 10(Keyway 3mm)-12.7
- inner hole 6: 12(Keyway 4mm)-12(Keyway 4mm)
- inner hole 7: 12(Keyway 4mm)-12.7
- inner hole 8: 12(Keyway 4mm)-14(Keyway 5mm)
- inner hole 9: 12(Keyway 4mm)-15(Keyway 5mm)
- inner hole 10: 14(Keyway 5mm)-14(Keyway 5mm)
- inner hole 11: 14(Keyway 5mm)-15(Keyway 5mm)
- inner hole 12: 15(Keyway 5mm)-15(Keyway 5mm)
- inner hole 13: 12.7-14(Keyway 5mm)
- inner hole 14: 12.7-15(Keyway 5mm)
- inner hole 15: 12.7-12.7 (without Keyway )

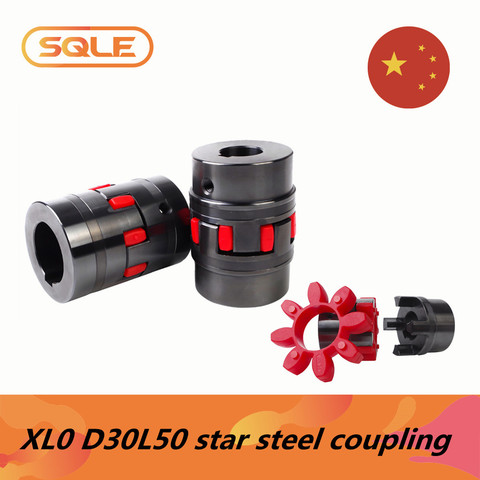

High torque XL0 D30L50 star Shaft Couplings STEEL coupling OD 30mm length 50mm claw coupling 45 round steel for servo motor
