Specifications
- Brand Name: Khadas
- Demo Board Type: ARM
- Certification: CE
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: Tone Board
- Chipset: XMOS XU208-128-QF48 Octa Cores, Core Share up to 500 MIPS
- DAC: ES9038Q2M 32-Bit Stereo Mobile Audio DAC
- THD+N: Less than 0.000337% @1KHz
- SNR: More than 120dB @ 10Hz~20KHz
- DNR: More than 120dB @ 10Hz~20KHz
- Crosstalk: More than 127dB @ 10Hz~20KHz
- Frequency Response: +/- 0.08 dB @ 10Hz~20KHz
- Sample Rate: PCM: Up to 768KHz@32bit; DSD: Up to DSD256@1bit
- Reference Clock Jitter: Less than 3ps
- Data Clock Jitter: Less than 30ps
- Line Out: 1x Red RCA for Right Channel, 1 x White RCA for Left Channel
- Indicator: White LED x1
- Mounting Holes: Size M2 x 5
- FPC Connector 30pin: 30-Pin 0.5mm Pitch: for 8 Channels Extension
- FPC Connectors 10pin-A, VIMs Edition: 10-Pin 0.5mm Pitch: for VIMs I2S Extension
- FPC Connectors 10pin-B, VIMs Edition: 10-Pin 0.5mm Pitch: for OLED Display
- S/PDIF IN: Up to 192KHz
- USB-C Port: Power Supply(5V/500mA) & USB 2.0 Data
- 40-PIN Header: Yes on VIMs Edition, No on Generic Edition
- 20-PIN Header: Yes on VIMs Edition, No on Generic Edition
- Audio Formats: APE2, FLAC,OGG,WAV,ACC,ALAC,MP3,WMA, etc.
- Dimensions: 82.0 x 74.5 x 24.0 mm

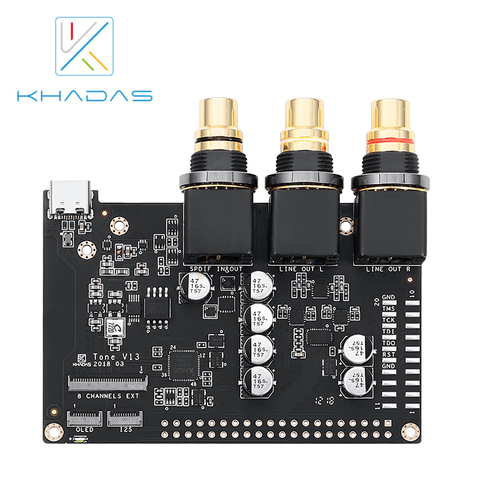

High performance DAC With ES9038Q2M 32-Bit Stereo Mobile Audio Generic Edition Tone Board Of Khadas
79.90
$
