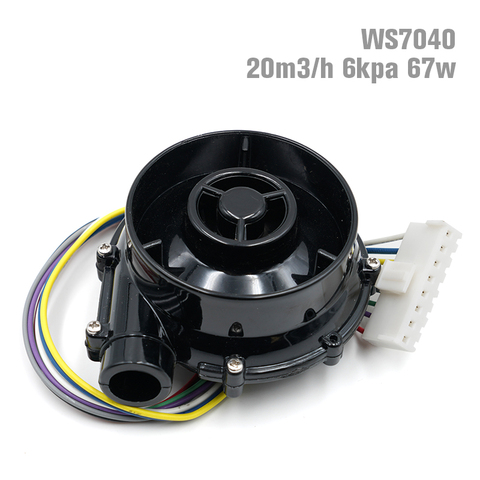

CPAP blower for ventilator, blower fan 70mm DC 12V 24V brushless air blower,turbo fan, dust collector, ventilator medical ► Photo 1/6
CPAP blower for ventilator, blower fan 70mm DC 12V 24V brushless air blower,turbo fan, dust collector, ventilator medical ► Photo 1/6
CPAP blower for ventilator, blower fan 70mm DC 12V 24V brushless air blower,turbo fan, dust collector, ventilator medical ► Photo 2/6
CPAP blower for ventilator, blower fan 70mm DC 12V 24V brushless air blower,turbo fan, dust collector, ventilator medical ► Photo 3/6

Photos of buyers

Specifications

  • Brand Name: OLOEY
  • Usage: Commercial Manufacture
  • Pressure: High Pressure
  • Model Number: WS7040-24-V200
  • Type: Turbo Blower
  • Application: Air Blower
  • Voltage: 24VDC centrifugal air blower
  • Speed (open): 36000RPM
  • Current (open): 2.8A
  • Air flow (open): 280LPM
  • Speed (sealed): 46000RPM
  • Air pressure (sealed): 6.5KPa
  • Motor Pole Paris: 1
  • Resistance--phase to phase: 1.6Ohm
  • Motor type: Three phase brushless
  • Bearing type: NMB ball bearing
  • Dielectric strength: 500VDC for 1 min
  • Insulation class: Class F
  • Protect class: IP54
  • Operating temperature range: Temp. -20 to +50 deg.C (No condensation)
  • Service life: 10000hrs(40 C degree rated operation point)
  • Hall effect sensor: 60
  • Driver type: WS2403DY01V04
  • Material: Plastic
  • Winding type: Delta

CPAP blower for ventilator, blower fan 70mm DC 12V 24V brushless air blower,turbo fan, dust collector, ventilator medical
