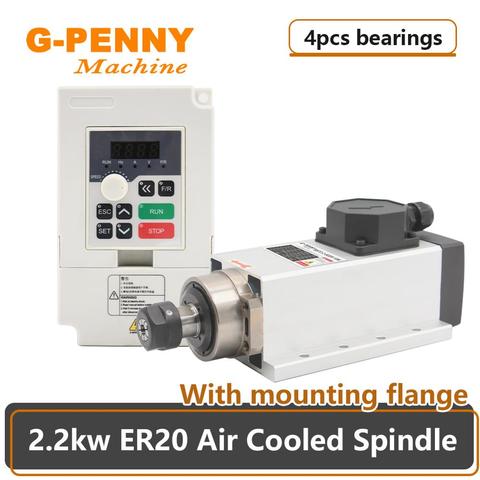

CNC spindle Motor Air cooling  220v 2.2kw ER20 Air cooled spindle 2.2KW QL-Inverter 300Hz 4pcs Ceramic ball bearigs ► Photo 1/6
CNC spindle Motor Air cooling  220v 2.2kw ER20 Air cooled spindle 2.2KW QL-Inverter 300Hz 4pcs Ceramic ball bearigs ► Photo 1/6
CNC spindle Motor Air cooling  220v 2.2kw ER20 Air cooled spindle 2.2KW QL-Inverter 300Hz 4pcs Ceramic ball bearigs ► Photo 2/6
CNC spindle Motor Air cooling  220v 2.2kw ER20 Air cooled spindle 2.2KW QL-Inverter 300Hz 4pcs Ceramic ball bearigs ► Photo 3/6

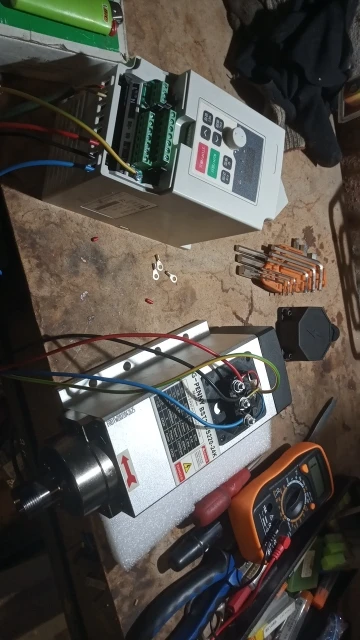

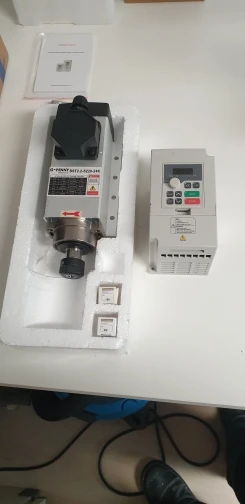

Photos of buyers

Specifications

  • Brand Name: G-PENNY MACHINE
  • Origin: CN(Origin)
  • Operating Speed: 0-18000rpm/0-24000rpm
  • Drive: MOTOR
  • Application: Milling
  • Model Number: 220v 2.2kw ER20 air cooled spindle
  • Maximum Torque: 1.17Nm
  • Spindle Size: 173x82x95mm
  • Spindle Voltage: 220v (If you need 380v,please tell us)
  • Spindle Current: 8.5A
  • Spindle Power: 2.2kw
  • Spindle Cooling: Air cooled
  • Spindle Bearing Type: 2x7005C P4 DB & 2x7002C P4 DT
  • Spindle Collet: ER20
  • Spindle Frequency: 300Hz/400Hz
  • Spindle Lubrication: Grease
  • Spindle Collet Range: 1-13mm (Including 1/4,1/8,1/2)
  • Inverter Parameter: 220v 2.2kw 1000Hz

CNC spindle Motor Air cooling 220v 2.2kw ER20 Air cooled spindle 2.2KW QL-Inverter 300Hz 4pcs Ceramic ball bearigs

Seller:
Alitools rating:
81%
/
Aliexpress rating:
100%
171.64 248.23 $
2   orders
/
1   reviews
Rating: 5

Price history

Price drop notification

Out telegram bot will notify you once the price drops to the desirable one

Customer Reviews

M***h
December 4, 2020

Works well but just a couple of comments. The spindle is HUGE and the inverter is small, despite how it looks in the photo. Measure things it so you really know what you're getting. The other thing is, the inverter was ordered as a 220v unit, but was set from factory as 380v output which caused a lot of heating in the spindle on it's first run and over current shutoff in the inverter. Took me a while to figure out what the problem was. This should NOT have happened, factory seeing should be correct when ordered as a set. If you order one, check all settings before running.
