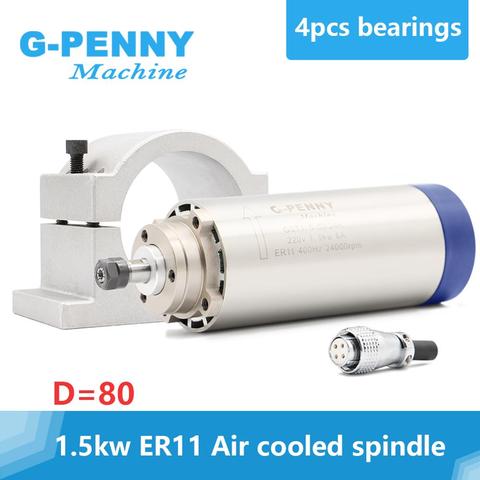

CNC milling spindle kit 1.5kw ER11 air cooled spindle 80mm diameter 4 pcs bearings accuracy 0.01mm & 80mm aluminum bracket ► Photo 1/6
CNC milling spindle kit 1.5kw ER11 air cooled spindle 80mm diameter 4 pcs bearings accuracy 0.01mm & 80mm aluminum bracket ► Photo 1/6
CNC milling spindle kit 1.5kw ER11 air cooled spindle 80mm diameter 4 pcs bearings accuracy 0.01mm & 80mm aluminum bracket ► Photo 2/6
CNC milling spindle kit 1.5kw ER11 air cooled spindle 80mm diameter 4 pcs bearings accuracy 0.01mm & 80mm aluminum bracket ► Photo 3/6

Specifications

  • Brand Name: G-PENNY MACHINE
  • Operating Speed: 0-24000rpm
  • Drive: MOTOR
  • Application: Milling
  • Model Number: 1.5kw ER11 air cooled spindle motor 80mm
  • Maximum Torque: 0.48Nm
  • Size: 80x199mm (80mm diameter)
  • Voltage: 220v
  • Current: 6A
  • Power: 1.5kw (1HP=735w)
  • Cooling: Air Cooled
  • Bearing type: 2X7002C P4 DT and 2X7002C P4 DT
  • Collet: ER11
  • Frequency: 400Hz
  • Collet Range: 1-7mm (Including 1/8,1/4 )
  • Spindle Bracket: 80mm

CNC milling spindle kit 1.5kw ER11 air cooled spindle 80mm diameter 4 pcs bearings accuracy 0.01mm & 80mm aluminum bracket
